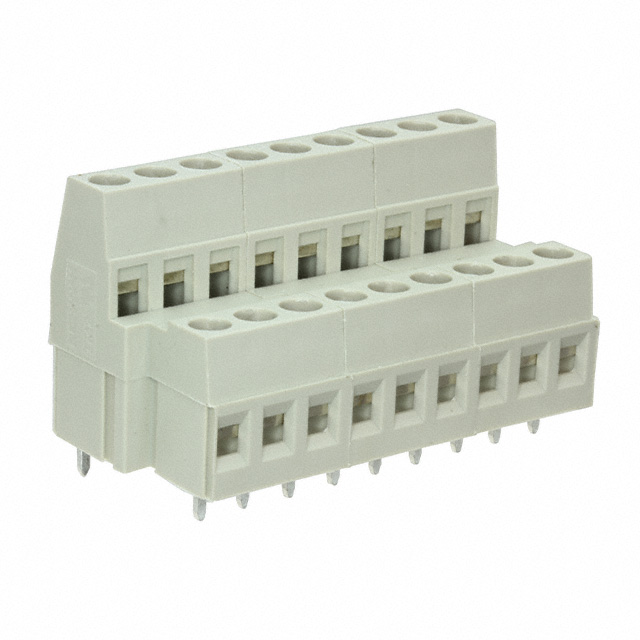

282888-7
Or copy the link below:
- Mfr.Part #
- 282888-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 9POS SIDE ENTRY 5MM PCB
- Stock
- 290
- In Stock ：
- 290
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Number of Rows :
- 2
- Wire Gauge (Min) :
- 12 AWG
- Wire Gauge :
- 12-30 AWG
- Max Supply Voltage (AC) :
- 300V
- Contact Plating :
- Tin
- Voltage - Rated :
- 300V
- Orientation :
- Straight
- Pbfree Code :
- yes
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Number of Decks :
- 2
- Mating Orientation :
- Horizontal with Board
- Wire Termination :
- Screw - Rising Cage Clamp
- Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~105°C
- Pitch :
- 0.197 5.00mm
- Mounting Type :
- Through Hole
- Safety Approval :
- UL
- RoHS Status :
- RoHS Compliant
- Color :
- Green
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 2 weeks ago)
- Series :
- Buchanan
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Screw Thread :
- M3
- Connector Type :
- Receptacle
- Packaging :
- Bulk
- Number of Positions :
- 9
- Screw Material - Plating :
- Brass - Nickel Plated
- Feature :
- Interlocking (Side)
- Contact Material - Plating :
- Brass - Tin Plated
- ELV :
- Compliant
- Factory Lead Time :
- 13 Weeks
- Max Current Rating :
- 17.5A
- Length :
- 47.5mm
- Termination :
- Solder
- Mount :
- Through Hole
- Published :
- 2005
- Clamp Material - Plating :
- Brass - Nickel Plated
- Contact Material :
- Brass
- Wire Gauge (Max) :
- 30 AWG
- Depth :
- 21.5mm
- Number of Ways :
- 18
- Number of Levels :
- 2
- Length - Tail :
- 3.81mm
- Datasheets
- 282888-7
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 12-30 AWG Buchanan
282888-7 Overview
The product comes in a package of Receptacle.Through Hole is the mount type.Bulk cases are used to package the product.This product is in the Buchanan Series.As a result of its Interlocking (Side) feature, it possesses a great deal of power.There's a Through Hole on the part.Operating temperature is -40°C~105°C.
282888-7 Features
Buchanan series
282888-7 Applications
There are a lot of TE Connectivity AMP Connectors
282888-7 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
