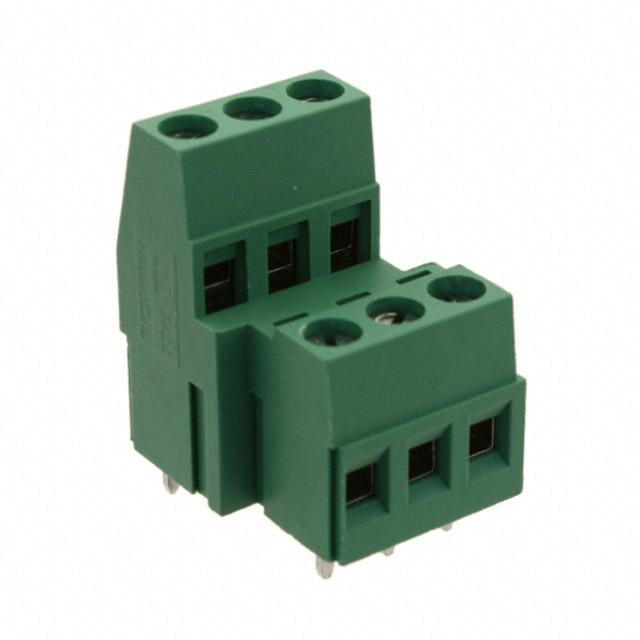

282888-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Number of Contacts :

6

Feature :

Interlocking (Side)

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Mating Orientation :

Horizontal with Board

Orientation :

Straight

Flammability Rating :

UL94 V-0

Voltage - Rated :

300V

Max Supply Voltage (AC) :

300V

Length :

17.5mm

Length - Tail :

3.81mm

Wire Termination :

Screw - Rising Cage Clamp

Connector Type :

Receptacle

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Series :

Buchanan

Published :

2005

RoHS Status :

RoHS Compliant

ELV :

Compliant

Max Current Rating :

17.5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

2

Wire Gauge (Min) :

12 AWG

Color :

Green

Packaging :

Bulk

Screw Thread :

M3

Number of Levels :

2

Screw Material - Plating :

Brass - Nickel Plated

Number of Ways :

6

Depth :

21.5mm

Housing Material :

Polyamide (PA66), Nylon 6/6

Mounting Type :

Through Hole

ECCN Code :

EAR99

Termination :

Solder

Gender :

FEMALE

Number of Decks :

2

Contact Plating :

Tin

Width :

21.5mm

Pitch :

0.197 5.00mm

Contact Material :

Brass

Number of Positions Per Level :

3

Max Voltage Rating (AC) :

300V

Current Rating :

17.5A

Clamp Material - Plating :

Brass - Nickel Plated

Safety Approval :

UL

Lifecycle Status :

ACTIVE (Last Updated: 4 months ago)

Radiation Hardening :

No

Operating Temperature :

-40°C~105°C

Material :

Polyamide

Wire Gauge (Max) :

30 AWG

Contact Material - Plating :

Brass - Tin Plated

Wire Gauge :

12-30 AWG

Factory Lead Time :

13 Weeks

Mount :

Through Hole
