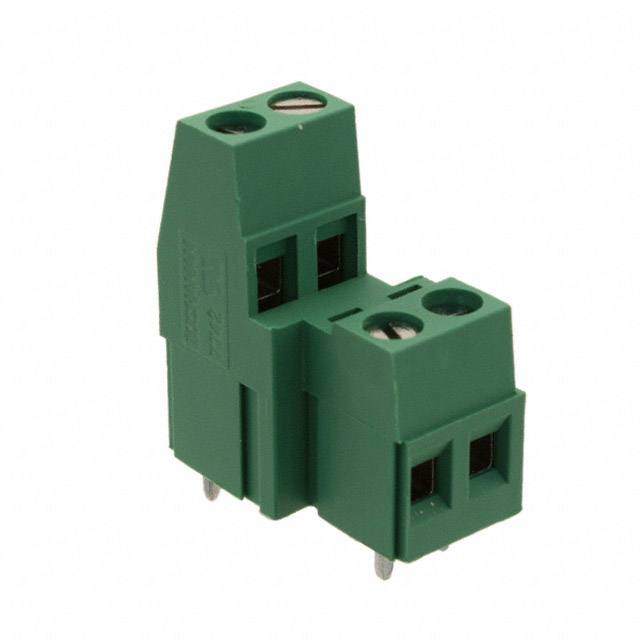

282888-2
Or copy the link below:
- Mfr.Part #
- 282888-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2POS SIDE ENTRY 5MM PCB
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Safety Approval :
- UL
- Number of Positions :
- 2
- Number of Circuits :
- 1
- Radiation Hardening :
- No
- Mounting Type :
- Through Hole
- ECCN Code :
- EAR99
- Screw Material - Plating :
- Brass - Nickel Plated
- Current Rating :
- 17.5A
- Number of Decks :
- 2
- Orientation :
- Straight
- Wire Gauge :
- 12-30 AWG
- Wire Termination :
- Screw - Rising Cage Clamp
- Termination :
- Solder
- Factory Lead Time :
- 13 Weeks
- Feature :
- Interlocking (Side)
- Contact Material :
- Brass
- Operating Temperature :
- -40°C~105°C
- Mount :
- Through Hole
- Color :
- Green
- Length - Tail :
- 3.81mm
- Mating Orientation :
- Horizontal with Board
- Flammability Rating :
- UL94 V-0
- Connector Type :
- Receptacle
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Number of Rows :
- 2
- Clamp Material - Plating :
- Brass - Nickel Plated
- Max Voltage Rating (AC) :
- 300V
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- ELV :
- Compliant
- Contact Plating :
- Tin
- Published :
- 2005
- Wire Gauge (Min) :
- 12 AWG
- Voltage - Rated :
- 300V
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Max Current Rating :
- 17.5A
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Contact Material - Plating :
- Brass - Tin Plated
- Pitch :
- 0.197 5.00mm
- Packaging :
- Bulk
- Number of Ways :
- 4
- HTS Code :
- 8536.69.40.40
- Wire Gauge (Max) :
- 30 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- Buchanan
- Screw Thread :
- M3
- Datasheets
- 282888-2
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 12-30 AWG Buchanan
282888-2 Overview
Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Buchanan Series, it can be found in this category.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Through Hole mounts the part.Circuits number 1 in the part.The device is operating at -40°C~105°C Operating Temperature.
282888-2 Features
Buchanan series
282888-2 Applications
There are a lot of TE Connectivity AMP Connectors
282888-2 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
