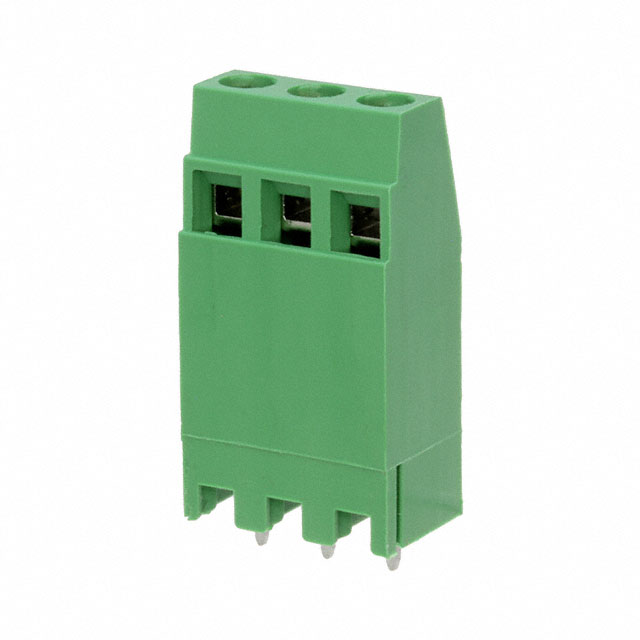

282884-3
Or copy the link below:
- Mfr.Part #
- 282884-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3POS SIDE ENTRY 5MM PCB
- Stock
- 8,688
- In Stock ：
- 8,688
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- ECCN Code :
- EAR99
- Max Current Rating :
- 13.5A
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Connector Type :
- Receptacle
- Number of Rows :
- 1
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Current Rating :
- 13.5A
- Packaging :
- Bulk
- Flammability Rating :
- UL94 V-0
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Length - Tail :
- 3.5mm
- Wire Gauge :
- 16-30 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Levels :
- 1
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Wire Termination :
- Screw - Rising Cage Clamp
- Feature :
- High Wire Entry Level, Interlocking (Side)
- Clamp Material - Plating :
- Brass - Nickel Plated
- Published :
- 2007
- Mounting Type :
- Through Hole
- Radiation Hardening :
- No
- Termination :
- Screw, Solder
- Screw Material - Plating :
- Brass - Nickel Plated
- Screw Thread :
- M3
- Contact Plating :
- Tin
- Series :
- Buchanan
- Operating Temperature :
- -40°C~105°C
- Wire Gauge (Max) :
- 30 AWG
- Number of Decks :
- 1
- Wire Gauge (Min) :
- 30 AWG
- Mount :
- Through Hole
- Contact Material - Plating :
- Brass - Tin Plated
- Pitch :
- 0.197 5.00mm
- Factory Lead Time :
- 13 Weeks
- Orientation :
- Straight
- Mating Orientation :
- Horizontal with Board
- Number of Ways :
- 3
- RoHS Status :
- RoHS Compliant
- Number of Contacts :
- 3
- Color :
- Green
- Contact Material :
- Brass
- ELV :
- Compliant
- Voltage - Rated :
- 300V
- Safety Approval :
- UL
- Datasheets
- 282884-3
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
282884-3 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Several benefits come from the High Wire Entry Level, Interlocking (Side) feature.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.
282884-3 Features
Buchanan series
282884-3 Applications
There are a lot of TE Connectivity AMP Connectors
282884-3 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
