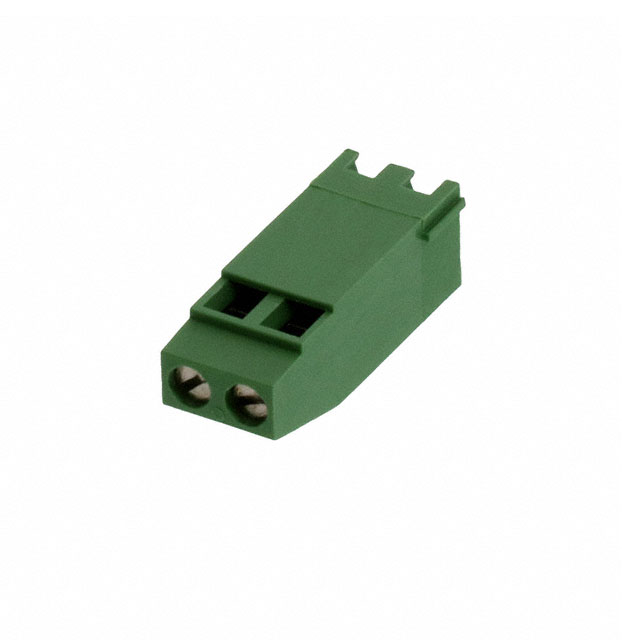

282884-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Contact Material - Plating :

Brass - Tin Plated

Mating Orientation :

Horizontal with Board

Number of Positions Per Level :

2

Mounting Type :

Through Hole

Max Current Rating :

13.5A

Number of Decks :

1

Wire Gauge (Max) :

30 AWG

Safety Approval :

UL

Number of Rows :

1

HTS Code :

8536.69.40.40

Connector Type :

Receptacle

Mount :

Through Hole

Number of Levels :

1

Color :

Green

Radiation Hardening :

No

Wire Gauge :

16-30 AWG

Length :

10mm

Depth :

9.5mm

Screw Thread :

M3

Feature :

High Wire Entry Level, Interlocking (Side)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

Brass

RoHS Status :

RoHS Compliant

Factory Lead Time :

13 Weeks

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Series :

Buchanan

Screw Material - Plating :

Brass - Nickel Plated

ECCN Code :

EAR99

Operating Temperature :

-40°C~105°C

Torque - Screw :

0.68 Nm (6 Lb-In)

Termination :

Solder

Wire Gauge (Min) :

16 AWG

Clamp Material - Plating :

Brass - Nickel Plated

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Pitch :

0.197 5.00mm

Voltage - Rated :

300V

Flammability Rating :

UL94 V-0

Number of Ways :

2

Published :

2007

Wire Termination :

Screw - Rising Cage Clamp

Housing Material :

Polyamide (PA66), Nylon 6/6

Contact Plating :

Tin

Max Supply Voltage (AC) :

300V

Current Rating :

13.5A

ELV :

Compliant

Orientation :

Straight

Packaging :

Bulk

Length - Tail :

3.5mm
