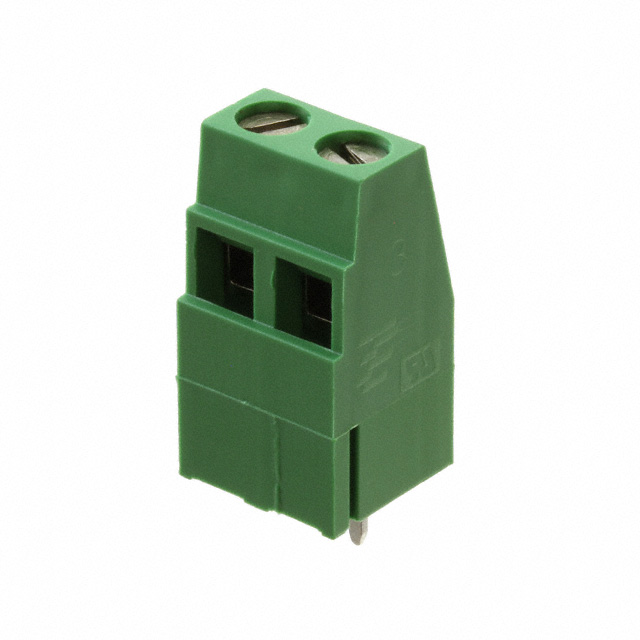

282880-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

HTS Code :

8536.69.40.40

Screw Material - Plating :

Brass - Nickel Plated

Pbfree Code :

yes

Connector Type :

Receptacle

Wire Gauge (Min) :

12 AWG

Feature :

Interlocking (Side), Mid Wire Entry Level

Pitch :

0.197 5.00mm

Contact Plating :

Tin

Screw Thread :

M3

Clamp Material - Plating :

Brass - Nickel Plated

Safety Approval :

UL

Number of Contacts :

2

Number of Ways :

2

Length - Tail :

3.5mm

ECCN Code :

EAR99

Number of Levels :

1

Termination :

Solder

Mounting Type :

Through Hole

RoHS Status :

RoHS Compliant

Max Voltage Rating (AC) :

300V

Number of Rows :

1

Mount :

Through Hole

Packaging :

Bulk

Radiation Hardening :

No

Number of Decks :

1

Contact Material - Plating :

Brass - Tin Plated

Flammability Rating :

UL94 V-0

Mating Orientation :

Horizontal with Board

Material :

Polyamide

Factory Lead Time :

13 Weeks

Housing Material :

Polyamide (PA66), Nylon 6/6

Published :

2007

ELV :

Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Current Rating :

13.5A

Wire Gauge (Max) :

30 AWG

Color :

Green

Wire Gauge :

12-30 AWG

Voltage - Rated :

300V

Wire Termination :

Screw - Rising Cage Clamp

Orientation :

Straight

Torque - Screw :

0.68 Nm (6 Lb-In)

Contact Material :

Brass

Series :

Buchanan

Lifecycle Status :

ACTIVE (Last Updated: 4 months ago)

Operating Temperature :

-40°C~105°C
