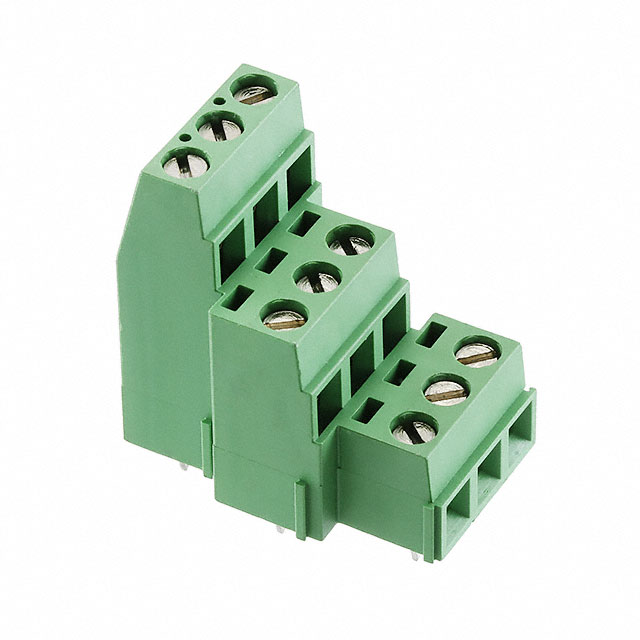

282877-3
Or copy the link below:
- Mfr.Part #
- 282877-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3P SIDE ENT 5.08MM PCB
- Stock
- 11,907
- In Stock ：
- 11,907
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Current Rating :
- 13.5A
- RoHS Status :
- RoHS Compliant
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Screw Material - Plating :
- Brass - Nickel Plated
- Published :
- 2007
- Flammability Rating :
- UL94 V-0
- Clamp Material - Plating :
- Brass - Nickel Plated
- Length - Tail :
- 3.5mm
- Number of Contacts :
- 9
- Screw Thread :
- M3
- Contact Material - Plating :
- Brass - Tin Plated
- Voltage - Rated :
- 300V
- Number of Decks :
- 3
- Operating Temperature :
- -40°C~105°C
- Contact Material :
- Brass
- Max Voltage Rating (AC) :
- 300V
- Termination :
- Solder
- Number of Positions Per Level :
- 3
- Wire Termination :
- Screw - Rising Cage Clamp
- Lead Free :
- Lead Free
- Mount :
- Through Hole
- Orientation :
- Straight
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 14 Weeks
- Radiation Hardening :
- No
- Wire Gauge (Min) :
- 30 AWG
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Max Current Rating :
- 13.5A
- Wire Cross Section :
- 1.5 mm2
- Pitch :
- 0.200 5.08mm
- Feature :
- Interlocking (Side)
- Wire Gauge (Max) :
- 30 AWG
- Wire Gauge :
- 12-30 AWG
- Number of Ways :
- 9
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Connector Type :
- Receptacle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 3
- Color :
- Green
- Safety Approval :
- UL
- Packaging :
- Bulk
- Contact Plating :
- Tin
- ELV :
- Compliant
- Mating Orientation :
- Horizontal with Board
- Series :
- Buchanan
- Datasheets
- 282877-3
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 12-30 AWG Buchanan
282877-3 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.
282877-3 Features
Buchanan series
282877-3 Applications
There are a lot of TE Connectivity AMP Connectors
282877-3 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
