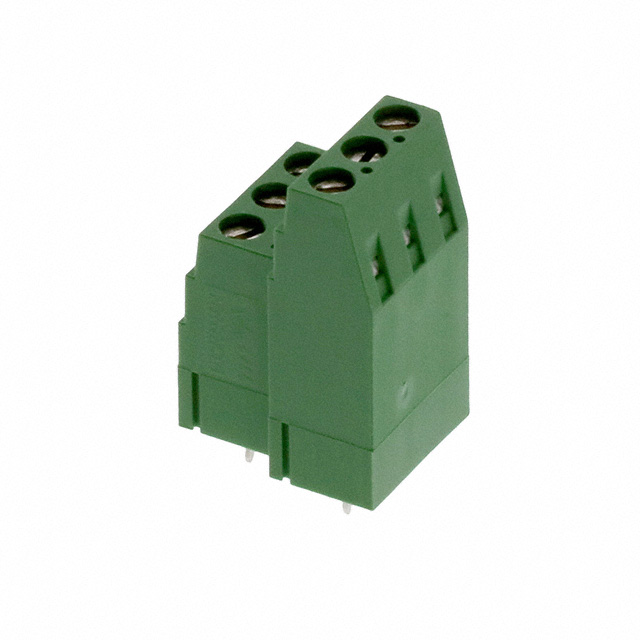

282873-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Number of Positions Per Level :

3

Radiation Hardening :

No

Voltage - Rated :

300V

Mounting Type :

Through Hole

Factory Lead Time :

13 Weeks

Wire Gauge :

12-30 AWG

Number of Decks :

2

Max Voltage Rating (AC) :

300V

Wire Gauge (Max) :

30 AWG

Feature :

Interlocking (Side), Mid Wire Entry Level

Max Supply Voltage (AC) :

300V

Packaging :

Bulk

Published :

2007

Pbfree Code :

yes

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Wire Gauge (Min) :

12 AWG

ELV :

Compliant

Length :

8.12mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch :

0.200 5.08mm

Housing Material :

Polyamide (PA66), Nylon 6/6

Screw Thread :

M3

Number of Levels :

2

Series :

Buchanan

ECCN Code :

EAR99

Mating Orientation :

Horizontal with Board

Orientation :

Straight

Torque - Screw :

0.68 Nm (6 Lb-In)

Length - Tail :

3.5mm

Number of Rows :

2

Contact Plating :

Tin

Connector Type :

Receptacle

RoHS Status :

RoHS Compliant

Contact Material :

Brass

Color :

Green

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Depth :

19.2mm

Contact Material - Plating :

Brass - Tin Plated

Flammability Rating :

UL94 V-0

Mount :

Through Hole

Termination :

Solder

Screw Material - Plating :

Brass - Nickel Plated

Operating Temperature :

-40°C~105°C

Wire Termination :

Screw - Rising Cage Clamp

Number of Ways :

6

Safety Approval :

UL

Max Current Rating :

13.5A

Number of Contacts :

6

Current Rating :

13.5A

Clamp Material - Plating :

Brass - Nickel Plated
