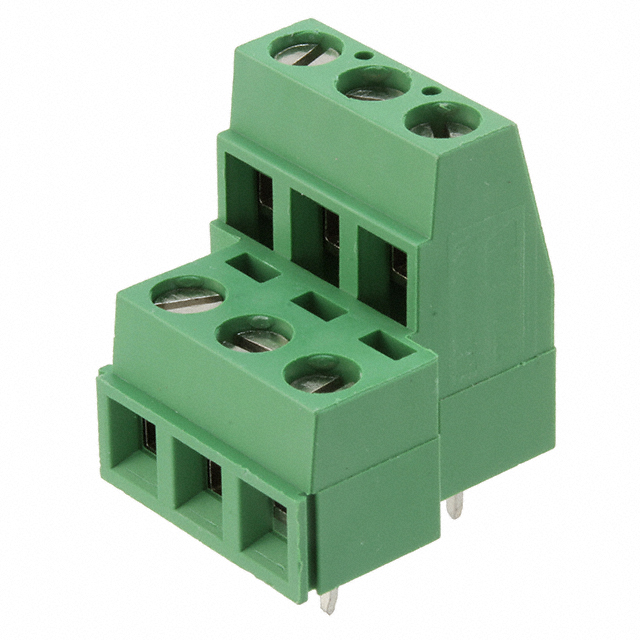

282869-3
Or copy the link below:
- Mfr.Part #
- 282869-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3P SIDE ENT 5.08MM PCB
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Safety Approval :
- UL
- Radiation Hardening :
- No
- Number of Levels :
- 2
- Pitch :
- 0.200 5.08mm
- Operating Temperature :
- -40°C~105°C
- Series :
- Buchanan
- Contact Plating :
- Tin
- Max Supply Voltage (AC) :
- 250V
- Depth :
- 18.5mm
- Screw Thread :
- M3
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Mount :
- Through Hole
- Wire Gauge (Max) :
- 30 AWG
- Number of Contacts :
- 6
- Packaging :
- Bulk
- Wire Gauge :
- 12-30 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Termination :
- Solder
- Mounting Type :
- Through Hole
- Wire Gauge (Min) :
- 12 AWG
- Voltage - Rated :
- 300V
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 2
- Contact Material :
- Brass
- Number of Positions Per Level :
- 3
- Current Rating :
- 13.5A
- Contact Material - Plating :
- Brass - Tin Plated
- Mating Orientation :
- Horizontal with Board
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Published :
- 2007
- Wire Termination :
- Screw - Rising Cage Clamp
- Color :
- Green
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 21 Weeks
- Length :
- 17.78mm
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Max Voltage Rating (AC) :
- 250V
- Flammability Rating :
- UL94 V-0
- Number of Ways :
- 6
- Max Current Rating :
- 13.5A
- Number of Decks :
- 2
- ECCN Code :
- EAR99
- Feature :
- Interlocking (Side)
- Clamp Material - Plating :
- Brass - Nickel Plated
- Length - Tail :
- 3.5mm
- Orientation :
- Straight
- Connector Type :
- Receptacle
- Screw Material - Plating :
- Brass - Nickel Plated
- Datasheets
- 282869-3
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 12-30 AWG Buchanan
282869-3 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.
282869-3 Features
Buchanan series
282869-3 Applications
There are a lot of TE Connectivity AMP Connectors
282869-3 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
