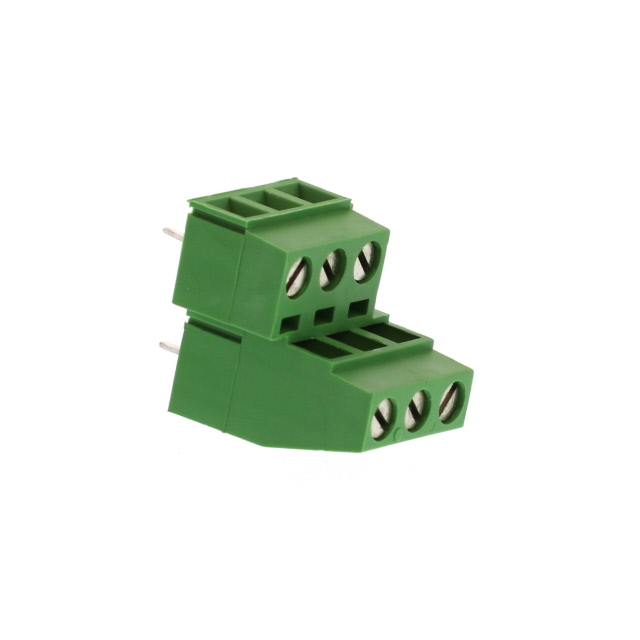

282868-3
Or copy the link below:
- Mfr.Part #
- 282868-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3POS SIDE ENTRY 5MM PCB
- Stock
- 4,813
- In Stock ：
- 4,813
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Number of Ways :
- 6
- Pitch :
- 0.197 5.00mm
- Screw Material - Plating :
- Brass - Nickel Plated
- Max Voltage Rating (AC) :
- 300V
- Contact Material - Plating :
- Brass - Tin Plated
- Factory Lead Time :
- 13 Weeks
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Wire Gauge :
- 12-30 AWG
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Orientation :
- Straight
- Voltage - Rated :
- 300V
- Number of Positions Per Level :
- 3
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Number of Rows :
- 2
- Series :
- Buchanan
- Termination :
- Solder
- Mount :
- Through Hole
- Feature :
- Interlocking (Side)
- Max Current Rating :
- 13.5A
- Wire Termination :
- Screw - Rising Cage Clamp
- ECCN Code :
- EAR99
- Safety Approval :
- UL
- Wire Gauge (Min) :
- 30 AWG
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Packaging :
- Bulk
- ELV :
- Compliant
- Radiation Hardening :
- No
- Clamp Material - Plating :
- Brass - Nickel Plated
- RoHS Status :
- RoHS Compliant
- Published :
- 2007
- Additional Feature :
- 94V-0, PA 6-6
- Length - Tail :
- 3.5mm
- Screw Thread :
- M3
- Mating Orientation :
- Horizontal with Board
- Contact Plating :
- Tin
- Contact Material :
- Brass
- Number of Levels :
- 2
- Color :
- Green
- Wire Gauge (Max) :
- 30 AWG
- Lead Free :
- Lead Free
- Operating Temperature :
- -40°C~105°C
- Current Rating :
- 13.5A
- Number of Decks :
- 2
- Connector Type :
- Receptacle
- Datasheets
- 282868-3
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 12-30 AWG Buchanan
282868-3 Overview
This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Buchanan Series.Furthermore, there are other features such as 94V-0, PA 6-6, to name a few.In many ways, Interlocking (Side) makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -40°C~105°C.
282868-3 Features
Buchanan series
282868-3 Applications
There are a lot of TE Connectivity AMP Connectors
282868-3 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
