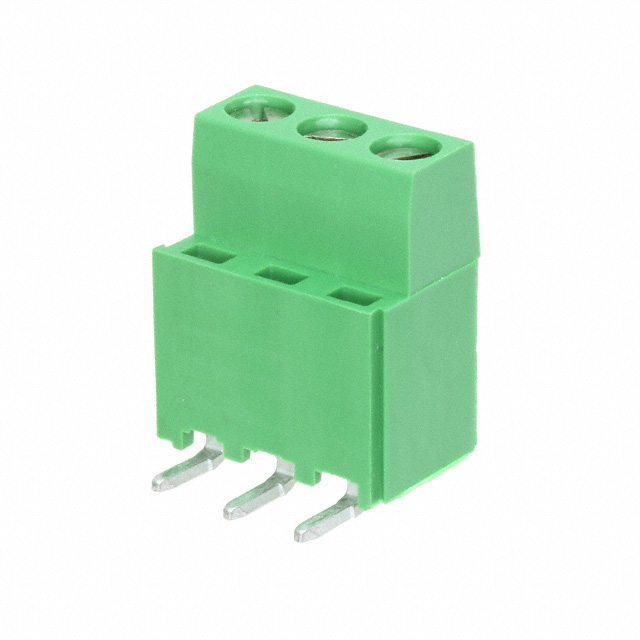

282862-3
Or copy the link below:
- Mfr.Part #
- 282862-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3POS TOP ENTRY 5MM PCB
- Stock
- 645
- In Stock ：
- 645
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Length - Tail :
- 3.6mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge :
- 12-30 AWG
- Screw Material - Plating :
- Brass - Nickel Plated
- Max Current Rating :
- 24A
- Max Voltage Rating (AC) :
- 300V
- Feature :
- Interlocking (Side)
- Wire Gauge (Max) :
- 30 AWG
- Wire Cross Section :
- 4 mm2
- Screw Thread :
- M3
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Published :
- 2007
- Mount :
- Through Hole
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Pitch :
- 0.197 5.00mm
- Contact Material - Plating :
- Brass - Tin Plated
- Packaging :
- Bulk
- Clamp Material - Plating :
- Brass - Nickel Plated
- RoHS Status :
- RoHS Compliant
- Wire Termination :
- Screw - Rising Cage Clamp
- Wire Gauge (Min) :
- 12 AWG
- Termination :
- Solder
- Number of Contacts :
- 3
- Max Operating Temperature :
- 105°C
- Color :
- Green
- Number of Levels :
- 1
- Series :
- Buchanan
- Contact Material :
- Brass
- Factory Lead Time :
- 12 Weeks
- Number of Ways :
- 3
- Connector Type :
- Receptacle
- Mating Orientation :
- Vertical with Board
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Current Rating :
- 24A
- Lead Free :
- Lead Free
- ELV :
- Compliant
- Radiation Hardening :
- No
- Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -40°C
- Number of Decks :
- 1
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Orientation :
- RIGHT ANGLE
- Contact Plating :
- Tin
- Safety Approval :
- UL
- Mounting Type :
- Through Hole
- ECCN Code :
- EAR99
- Number of Rows :
- 1
- Voltage - Rated :
- 300V
- Datasheets
- 282862-3
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282862-3 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.If the temperature is below 105°C, it's best to use it.-40°C is the minimum temperature for this device.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
282862-3 Features
Buchanan series
282862-3 Applications
There are a lot of TE Connectivity AMP Connectors
282862-3 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
