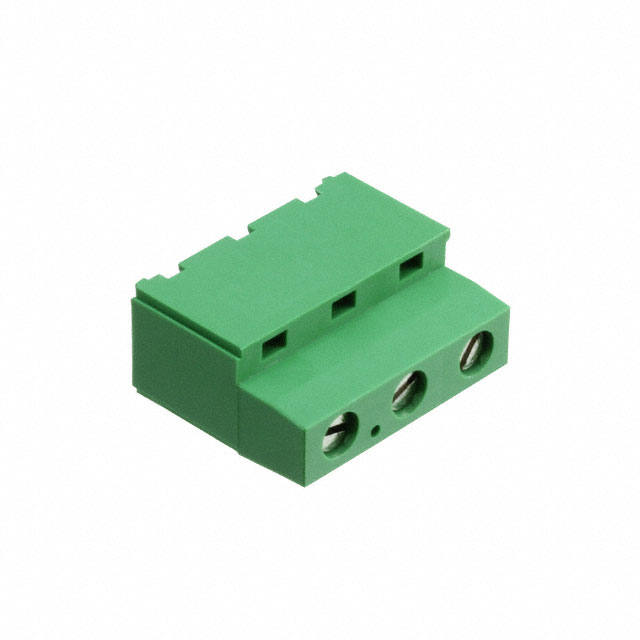

282861-3
Or copy the link below:
- Mfr.Part #
- 282861-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3P SIDE ENT 7.62MM PCB
- Stock
- 9,161
- In Stock ：
- 9,161
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Housing Color :
- Green
- Number of Positions Per Level :
- 3
- Screw Thread :
- M3
- Screw Material - Plating :
- Brass - Nickel Plated
- Clamp Material - Plating :
- Brass - Nickel Plated
- RoHS Status :
- RoHS Compliant
- Wire Gauge :
- 12-30 AWG
- Depth :
- 10mm
- Voltage :
- 300V
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Wire Gauge (Max) :
- 30 AWG
- Feature :
- Interlocking (Side)
- Packaging :
- Bulk
- Current :
- 24A
- Mount :
- Through Hole
- Pitch :
- 0.300 7.62mm
- Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 3
- Contact Material - Plating :
- Brass - Tin Plated
- Radiation Hardening :
- No
- Factory Lead Time :
- 12 Weeks
- Positions Per Level :
- 3
- Current Rating :
- 24A
- Thread Size :
- M3
- Color :
- Green
- ELV :
- Compliant
- Orientation :
- Straight
- Max Current Rating :
- 24A
- Length :
- 22.86mm
- Connector Type :
- Receptacle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 3
- Number of Circuits :
- 3
- Mounting Type :
- Through Hole
- Contact Plating :
- Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Published :
- 2007
- Number of Rows :
- 1
- Voltage - Rated :
- 300V
- Max Supply Voltage (AC) :
- 450V
- Wire Gauge (Min) :
- 12 AWG
- Length - Tail :
- 3.5mm
- Mating Orientation :
- Horizontal with Board
- Number of Levels :
- 1
- Plating :
- Brass
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Series :
- Buchanan
- Termination :
- Solder
- Contact Material :
- Brass
- Wire Termination :
- Screw - Rising Cage Clamp
- Datasheets
- 282861-3
0.300 7.62mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282861-3 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.Contains 3 circuits.
282861-3 Features
Buchanan series
282861-3 Applications
There are a lot of TE Connectivity AMP Connectors
282861-3 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
