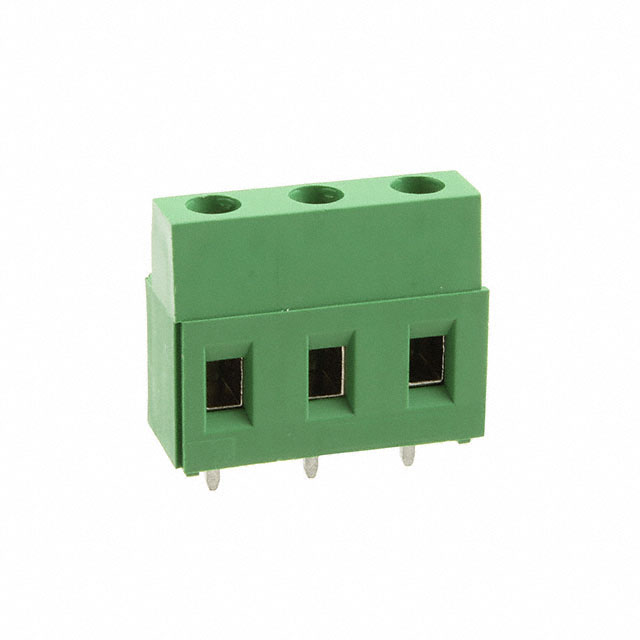

282860-3
Or copy the link below:
- Mfr.Part #
- 282860-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3POS SIDE ENT 7.5MM PCB
- Stock
- 13,126
- In Stock ：
- 13,126
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Depth :
- 10mm
- Connector Type :
- Receptacle
- Packaging :
- Bulk
- Series :
- Buchanan
- Plating :
- Brass
- Feature :
- Interlocking (Side)
- Wire Termination :
- Screw - Rising Cage Clamp
- Clamp Material - Plating :
- Brass - Nickel Plated
- Number of Positions Per Level :
- 3
- Screw Thread :
- M3
- Flammability Rating :
- UL94 V-0
- Wire Gauge (Max) :
- 30 AWG
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Length :
- 23mm
- Current :
- 24A
- Positions Per Level :
- 3
- Voltage - Rated :
- 300V
- Number of Positions :
- 3
- Voltage :
- 300V
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Mounting Type :
- Through Hole
- Contact Material :
- Brass
- Number of Circuits :
- 3
- Radiation Hardening :
- No
- Termination :
- Solder
- Number of Contacts :
- 3
- Screw Material - Plating :
- Brass - Nickel Plated
- Orientation :
- Straight
- Max Supply Voltage (AC) :
- 300V
- Current Rating :
- 24A
- Contact Material - Plating :
- Brass - Tin Plated
- Mount :
- Through Hole
- Pitch :
- 0.295 7.50mm
- Contact Plating :
- Tin
- Wire Gauge (Min) :
- 12 AWG
- Length - Tail :
- 3.5mm
- Housing Color :
- Green
- Number of Rows :
- 1
- Thread Size :
- M3
- Factory Lead Time :
- 20 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Orientation :
- Horizontal with Board
- Wire Gauge :
- 12-30 AWG
- Published :
- 2005
- Color :
- Green
- Number of Levels :
- 1
- Datasheets
- 282860-3
0.295 7.50mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282860-3 Overview
A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Buchanan Series of products.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.3 circuits make up the part.
282860-3 Features
Buchanan series
282860-3 Applications
There are a lot of TE Connectivity AMP Connectors
282860-3 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
