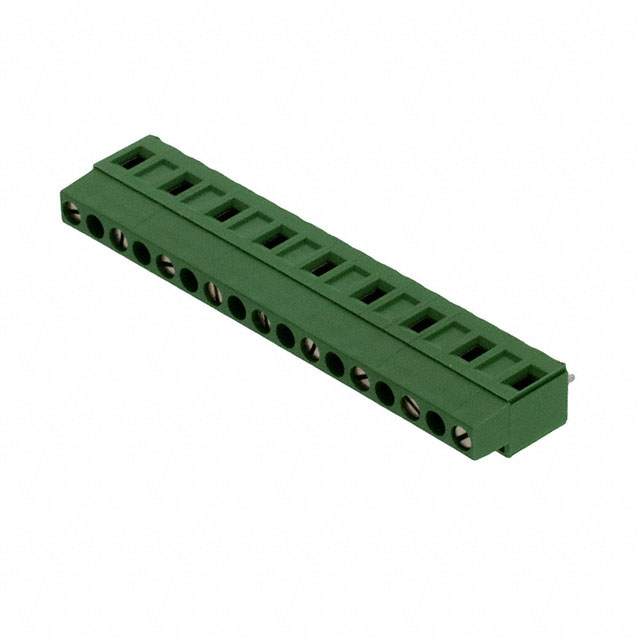

282858-9
Or copy the link below:
- Mfr.Part #
- 282858-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 9P SIDE ENTRY 10MM PCB
- Stock
- 187
- In Stock ：
- 187
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Wire Gauge (Min) :
- 12 AWG
- Wire Cross Section :
- 4 mm2
- Current Rating :
- 24A
- Wire Gauge :
- 12-30 AWG
- Wire Termination :
- Screw - Rising Cage Clamp
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Number of Rows :
- 1
- Series :
- Buchanan
- Screw Material - Plating :
- Brass - Nickel Plated
- Termination :
- Screw
- Number of Decks :
- 1
- Pitch :
- 0.394 10.00mm
- Mating Orientation :
- Horizontal with Board
- Clamp Material - Plating :
- Brass - Nickel Plated
- Length - Tail :
- 3.5mm
- Number of Ways :
- 9
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material - Plating :
- Brass - Tin Plated
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Contact Material :
- Brass
- Flammability Rating :
- UL94 V-0
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Number of Levels :
- 1
- Pbfree Code :
- yes
- Color :
- Green
- Number of Contacts :
- 9
- ELV :
- Compliant
- Screw Thread :
- M3
- Radiation Hardening :
- No
- Feature :
- Interlocking (Side)
- Factory Lead Time :
- 21 Weeks
- Max Current Rating :
- 24A
- Orientation :
- Straight
- Connector Type :
- Receptacle
- Safety Approval :
- UL
- Published :
- 2007
- Wire Gauge (Max) :
- 30 AWG
- Contact Plating :
- Tin
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Voltage - Rated :
- 600V
- Datasheets
- 282858-9
0.394 10.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282858-9 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.
282858-9 Features
Buchanan series
282858-9 Applications
There are a lot of TE Connectivity AMP Connectors
282858-9 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
