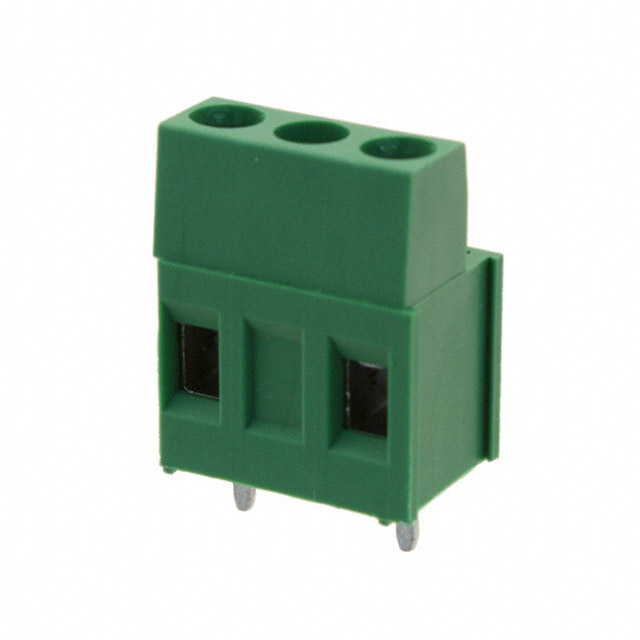

282858-2
Or copy the link below:
- Mfr.Part #
- 282858-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2P SIDE ENTRY 10MM PCB
- Stock
- 5,826
- In Stock ：
- 5,826
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Post :
- Tin
- Mating Contact Pitch :
- 0.1 inch
- Contact Length - Mating :
- 0.246 6.25mm
- Contact Length - Post :
- 0.118 3.00mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Operating Temperature (Min) :
- -65°C
- Packaging :
- Bulk
- Plating Thickness :
- 31μin
- Style :
- Board to Cable/Wire
- Mount :
- Through Hole
- Number Of PCB Rows :
- 2
- DIN Conformance :
- No
- Housing Color :
- Grey
- Polarization Key :
- CTR W/GUIDE SLOTS
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 1A
- IEC Conformance :
- No
- Series :
- AMP-Latch
- Contact Type :
- Male Pin
- Connector Type :
- Header
- Operating Temperature (Max) :
- 105°C
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Mounting Type :
- Through Hole
- Mixed Contacts :
- No
- Number of Positions Loaded :
- All
- MIL Conformance :
- No
- Contact Finish Thickness - Mating :
- 31.5μin 0.80μm
- Reference Standard :
- UL, CSA
- HTS Code :
- 8536.69.40.40
- Depth :
- 8.8mm
- ECCN Code :
- EAR99
- Lead Length :
- 3mm
- Reliability :
- COMMERCIAL
- Radiation Hardening :
- No
- Insulation Color :
- Black
- JESD-609 Code :
- e3
- Feature :
- Keying Slot, Mounting Flange
- Body Breadth :
- 0.346 inch
- Length :
- 52.3mm
- UL Flammability Code :
- 94V-0
- RoHS Status :
- RoHS Compliant
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Height :
- 0.543 13.80mm
- Termination :
- Solder
- Filter Feature :
- No
- Insulation Material :
- Polyester, Glass Filled
- Contact Material :
- Brass
- Published :
- 2012
- Contact Shape :
- Circular
- Factory Lead Time :
- 7 Weeks
- Contact Finish - Mating :
- Gold or Gold-Palladium
- Number of Conductors :
- ONE
- Insulation Resistance :
- 1000000000Ohm
- Test Voltage :
- 1kV
- Contact Gender :
- Male
- Overall Contact Length :
- 0.652 16.56mm
- Housing Material :
- Thermoplastic
- Number of Positions :
- 26
- Fastening Type :
- Latch Lock/Eject Hooks
- Pitch - Mating :
- 0.100 2.54mm
- Rated Current (Signal) :
- 1A
- Flammability Rating :
- UL94 V-0
- Dielectric Withstanding Voltage :
- 1000VAC V
- Option :
- GENERAL PURPOSE
- Number of Rows :
- 2
- Orientation :
- Vertical
- Datasheets
- 282858-2
AMP-Latch Series 2-Row Header Solder Brass Bulk Through Hole Gold or Gold-Palladium Polyester, Glass Filled 26-Position Board to Cable/Wire 0.543 13.80mm Height
2-828582-6 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the AMP-Latch Series of products.Its Keying Slot, Mounting Flange feature renders it more powerful in many ways.The part is mounted by Through Hole.
2-828582-6 Features
AMP-Latch series
2-828582-6 Applications
There are a lot of TE Connectivity AMP Connectors
2-828582-6 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
