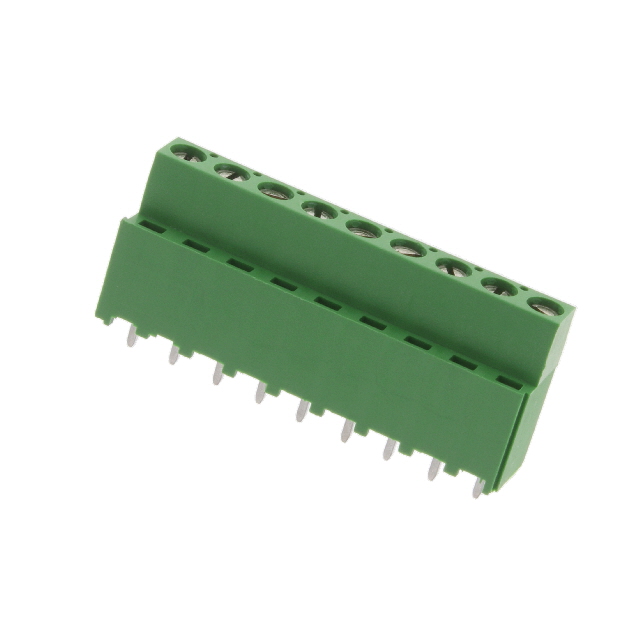

282857-9
Or copy the link below:
- Mfr.Part #
- 282857-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 9P SIDE ENT 5.08MM PCB
- Stock
- 1,007
- In Stock ：
- 1,007
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Radiation Hardening :
- No
- RoHS Status :
- RoHS Compliant
- Contact Plating :
- Tin
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flammability Rating :
- UL94 V-0
- Termination :
- Screw
- Packaging :
- Bulk
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Screw Material - Plating :
- Brass - Nickel Plated
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Wire Gauge (Max) :
- 30 AWG
- Number of Ways :
- 9
- Wire Gauge (Min) :
- 30 AWG
- Number of Decks :
- 1
- Mating Orientation :
- Horizontal with Board
- Published :
- 2007
- Color :
- Green
- Voltage - Rated :
- 300V
- Feature :
- Interlocking (Side)
- Connector Type :
- Receptacle
- Lifecycle Status :
- ACTIVE (Last Updated: 2 weeks ago)
- Current Rating :
- 24A
- Series :
- Buchanan
- Number of Contacts :
- 9
- Factory Lead Time :
- 21 Weeks
- Wire Gauge :
- 12-30 AWG
- Safety Approval :
- UL; VDE; CSA
- Contact Material :
- Brass
- Clamp Material - Plating :
- Brass - Nickel Plated
- Length - Tail :
- 3.5mm
- Max Current Rating :
- 24A
- Wire Cross Section :
- 4 mm2
- Number of Levels :
- 1
- Pbfree Code :
- yes
- Wire Termination :
- Screw - Rising Cage Clamp
- Orientation :
- Straight
- ELV :
- Compliant
- Number of Rows :
- 1
- Contact Material - Plating :
- Brass - Tin Plated
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Screw Thread :
- M3
- Mounting Type :
- Through Hole
- Pitch :
- 0.200 5.08mm
- Datasheets
- 282857-9
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282857-9 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
282857-9 Features
Buchanan series
282857-9 Applications
There are a lot of TE Connectivity AMP Connectors
282857-9 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
