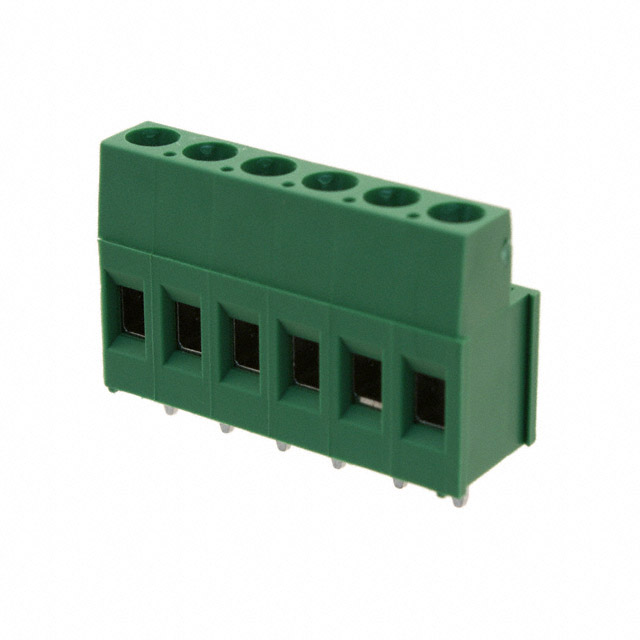

282857-6
Or copy the link below:
- Mfr.Part #
- 282857-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 6P SIDE ENT 5.08MM PCB
- Stock
- 240
- In Stock ：
- 240
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Wire Gauge :
- 12-30 AWG
- Max Voltage Rating (AC) :
- 250V
- Series :
- Buchanan
- Wire Gauge (Max) :
- 30 AWG
- Radiation Hardening :
- No
- Max Supply Voltage (AC) :
- 250V
- Contact Plating :
- Tin
- Mount :
- Through Hole
- ELV :
- Compliant
- Wire Gauge (Min) :
- 30 AWG
- Color :
- Green
- Flammability Rating :
- UL94 V-0
- Max Current Rating :
- 24A
- Mating Orientation :
- Horizontal with Board
- Orientation :
- Straight
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Current :
- 24A
- Published :
- 2007
- RoHS Status :
- RoHS Compliant
- Clamp Material - Plating :
- Brass - Nickel Plated
- Positions Per Level :
- 6
- Length - Tail :
- 3.5mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Levels :
- 1
- Mounting Type :
- Through Hole
- Voltage :
- 300V
- Number of Rows :
- 1
- Thread Size :
- M3
- Plating :
- Brass
- Pitch :
- 0.200 5.08mm
- Number of Positions :
- 6
- Wire Termination :
- Screw - Rising Cage Clamp
- Feature :
- Interlocking (Side)
- Current Rating :
- 24A
- Connector Type :
- Receptacle
- Voltage - Rated AC :
- 300V
- Screw Material - Plating :
- Brass - Nickel Plated
- Voltage - Rated :
- 300V
- Contact Material :
- Brass
- Screw Thread :
- M3
- Depth :
- 10mm
- Factory Lead Time :
- 12 Weeks
- Packaging :
- Bulk
- Termination :
- Solder
- Number of Circuits :
- 6
- Number of Contacts :
- 6
- Housing Color :
- Green
- Length :
- 30.48mm
- Number of Positions Per Level :
- 6
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Contact Material - Plating :
- Brass - Tin Plated
- Datasheets
- 282857-6
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282857-6 Overview
The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Buchanan Series.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.It has 6 circuits.
282857-6 Features
Buchanan series
282857-6 Applications
There are a lot of TE Connectivity AMP Connectors
282857-6 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
