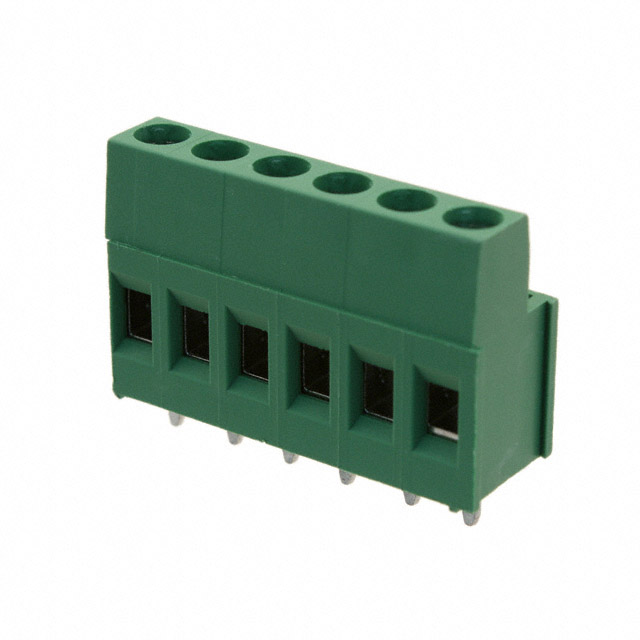

282856-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Number of Levels :

1

Depth :

19mm

Contact Material :

Brass

Length - Tail :

3.5mm

Current Rating :

24A

Orientation :

Straight

Termination :

Solder

Voltage - Rated :

300V

Screw Thread :

M3

Flammability Rating :

UL94 V-0

Contact Plating :

Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Clamp Material - Plating :

Brass - Nickel Plated

Max Current Rating :

24A

Published :

2007

Wire Gauge (Min) :

30 AWG

Series :

Buchanan

Factory Lead Time :

12 Weeks

Mount :

Through Hole

ECCN Code :

EAR99

Number of Decks :

1

Width :

10mm

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Wire Cross Section :

4 mm2

Feature :

Interlocking (Side)

RoHS Status :

RoHS Compliant

Packaging :

Bulk

Number of Rows :

1

Max Voltage Rating (AC) :

300V

Safety Approval :

UL

Material :

Polyamide

Pitch :

0.197 5.00mm

ELV :

Compliant

Connector Type :

Receptacle

Mating Orientation :

Horizontal with Board

Wire Gauge :

12-30 AWG

Gender :

FEMALE

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Radiation Hardening :

No

Contact Material - Plating :

Brass - Tin Plated

Wire Gauge (Max) :

30 AWG

Length :

30mm

Number of Positions Per Level :

6

Housing Material :

Polyamide (PA66), Nylon 6/6

Wire Termination :

Screw - Rising Cage Clamp

Number of Ways :

6

Color :

Green

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Mounting Type :

Through Hole

Screw Material - Plating :

Brass - Nickel Plated
