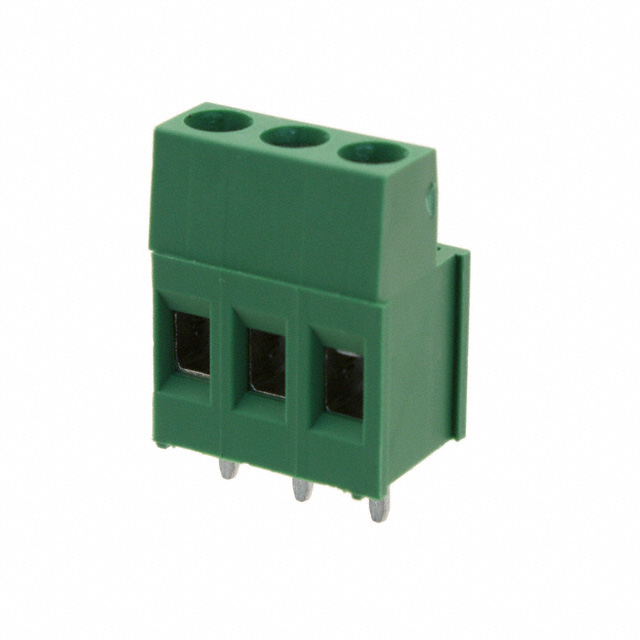

282856-3
Or copy the link below:
- Mfr.Part #
- 282856-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3POS SIDE ENTRY 5MM PCB
- Stock
- 20,154
- In Stock ：
- 20,154
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Wire Gauge :
- 12-30 AWG
- Number of Contacts :
- 3
- Number of Rows :
- 1
- Clamp Material - Plating :
- Brass - Nickel Plated
- RoHS Status :
- RoHS Compliant
- Mount :
- Through Hole
- Series :
- Buchanan
- Number of Levels :
- 1
- Radiation Hardening :
- No
- Mating Orientation :
- Horizontal with Board
- Max Voltage Rating (AC) :
- 300V
- Orientation :
- Straight
- Wire Termination :
- Screw - Rising Cage Clamp
- Factory Lead Time :
- 21 Weeks
- Wire Cross Section :
- 4 mm2
- Length - Tail :
- 3.5mm
- Contact Plating :
- Tin
- Current Rating :
- 24A
- Mounting Type :
- Through Hole
- Number of Decks :
- 1
- Published :
- 2007
- Color :
- Green
- Max Current Rating :
- 24A
- ELV :
- Compliant
- Length :
- 15mm
- Screw Material - Plating :
- Brass - Nickel Plated
- Number of Ways :
- 3
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Safety Approval :
- UL
- Screw Thread :
- M3
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Contact Material :
- Brass
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Max Supply Voltage (AC) :
- 300V
- Connector Type :
- Receptacle
- Lead Free :
- Lead Free
- Wire Gauge (Min) :
- 30 AWG
- Packaging :
- Bulk
- Feature :
- Interlocking (Side)
- Pitch :
- 0.197 5.00mm
- Wire Gauge (Max) :
- 30 AWG
- Voltage - Rated :
- 300V
- Additional Feature :
- PA6-6, 94V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- ECCN Code :
- EAR99
- Depth :
- 10mm
- Termination :
- Solder
- Flammability Rating :
- UL94 V-0
- Contact Material - Plating :
- Brass - Tin Plated
- Datasheets
- 282856-3
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282856-3 Overview
This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Buchanan Series.Furthermore, there are other features such as PA6-6, 94V-0, to name a few.In many ways, Interlocking (Side) makes it more powerful.By Through Hole, the part is mounted.
282856-3 Features
Buchanan series
282856-3 Applications
There are a lot of TE Connectivity AMP Connectors
282856-3 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
