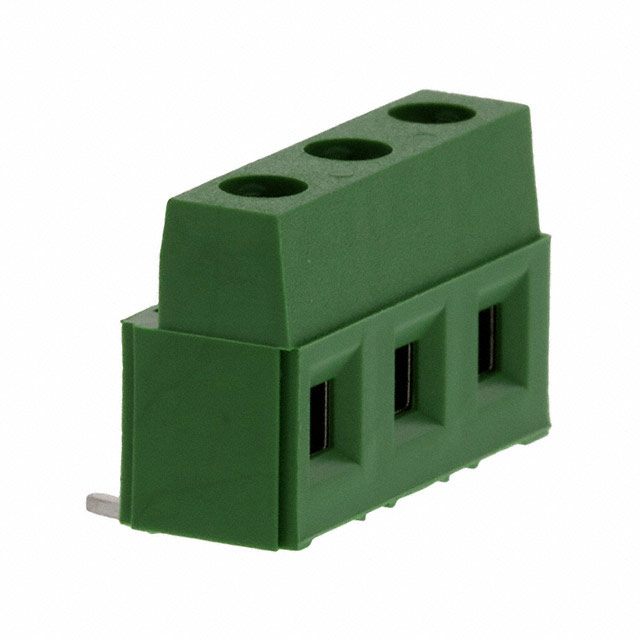

282854-3
Or copy the link below:
- Mfr.Part #
- 282854-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3P TOP ENTRY 7.5MM PCB
- Stock
- 30
- In Stock ：
- 30
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Wire Gauge (Min) :
- 30 AWG
- Mounting Type :
- Through Hole
- Additional Feature :
- 94V-0, PA66
- Pbfree Code :
- yes
- Number of Ways :
- 3
- Number of Decks :
- 1
- Voltage - Rated :
- 300V
- Contact Plating :
- Tin
- Wire Gauge :
- 12-30 AWG
- Radiation Hardening :
- No
- Mating Orientation :
- Vertical with Board
- Length - Tail :
- 3.6mm
- Number of Rows :
- 1
- Pitch :
- 0.295 7.50mm
- Max Current Rating :
- 17.5A
- Packaging :
- Bulk
- Factory Lead Time :
- 12 Weeks
- Screw Thread :
- M3
- Number of Levels :
- 1
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Series :
- Buchanan
- Termination :
- Solder
- ELV :
- Compliant
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Feature :
- Interlocking (Side)
- Clamp Material - Plating :
- Brass - Nickel Plated
- Contact Material - Plating :
- Brass - Tin Plated
- Published :
- 2007
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Material :
- Brass
- Connector Type :
- Receptacle
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Screw Material - Plating :
- Brass - Nickel Plated
- Max Voltage Rating (AC) :
- 450V
- Mount :
- Through Hole
- Wire Termination :
- Screw - Rising Cage Clamp
- ECCN Code :
- EAR99
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Green
- Wire Gauge (Max) :
- 30 AWG
- Wire Cross Section :
- 2.5 mm2
- RoHS Status :
- RoHS Compliant
- Orientation :
- RIGHT ANGLE
- Safety Approval :
- UL
- Number of Contacts :
- 3
- Datasheets
- 282854-3
0.295 7.50mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282854-3 Overview
The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Buchanan Series.To name a few, there is also 94V-0, PA66.There are a number of advantages to its Interlocking (Side) feature.Part Through Hole is mounted to the part.
282854-3 Features
Buchanan series
282854-3 Applications
There are a lot of TE Connectivity AMP Connectors
282854-3 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
