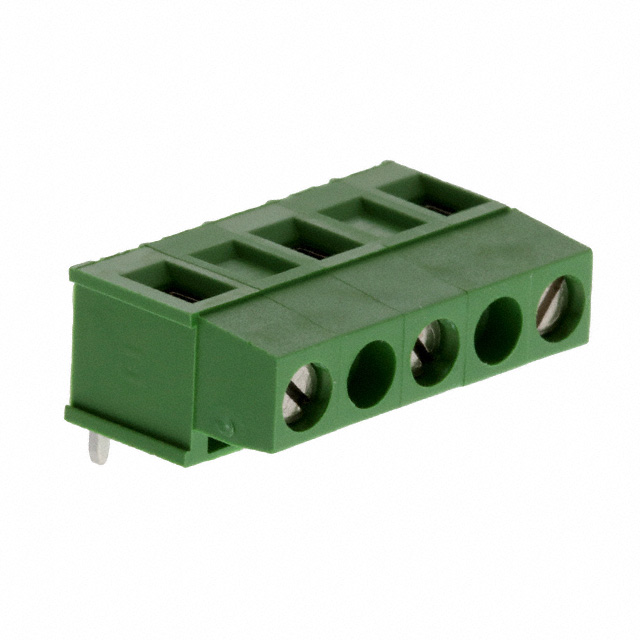

282852-3
Or copy the link below:
- Mfr.Part #
- 282852-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3POS TOP ENTRY 10MM PCB
- Stock
- 480
- In Stock ：
- 480
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Published :
- 2007
- RoHS Status :
- RoHS Compliant
- Orientation :
- RIGHT ANGLE
- Contact Material - Plating :
- Brass - Tin Plated
- ECCN Code :
- EAR99
- Safety Approval :
- UL
- Max Voltage Rating (AC) :
- 600V
- Contact Material :
- Brass
- Color :
- Green
- Contact Plating :
- Tin
- Clamp Material - Plating :
- Brass - Nickel Plated
- Number of Rows :
- 1
- Feature :
- Interlocking (Side)
- Screw Thread :
- M3
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Number of Ways :
- 3
- Pitch :
- 0.394 10.00mm
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Tail :
- 3.6mm
- Number of Contacts :
- 3
- Packaging :
- Bulk
- Wire Termination :
- Screw - Rising Cage Clamp
- Number of Levels :
- 1
- Wire Gauge :
- 12-30 AWG
- ELV :
- Compliant
- Max Current Rating :
- 17.5A
- Pbfree Code :
- yes
- Screw Material - Plating :
- Brass - Nickel Plated
- Voltage - Rated :
- 600V
- Termination :
- Solder
- Mount :
- Through Hole
- Factory Lead Time :
- 12 Weeks
- Number of Decks :
- 1
- Flammability Rating :
- UL94 V-0
- Wire Cross Section :
- 2.5 mm2
- Connector Type :
- Receptacle
- Wire Gauge (Max) :
- 30 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Wire Gauge (Min) :
- 12 AWG
- Mating Orientation :
- Vertical with Board
- Radiation Hardening :
- No
- Series :
- Buchanan
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Datasheets
- 282852-3
0.394 10.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282852-3 Overview
You'll get Receptacle packages.A Through Hole mounting type is specified for the device.A Bulk case is used for packaging.The product belongs to the Buchanan Series.A number of aspects of its Interlocking (Side) feature make it more powerful.By Through Hole it's mounted.
282852-3 Features
Buchanan series
282852-3 Applications
There are a lot of TE Connectivity AMP Connectors
282852-3 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
