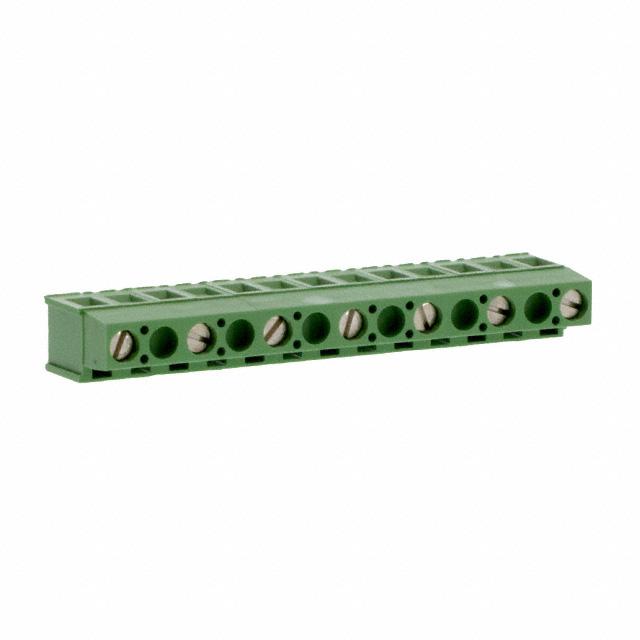

282843-7
Or copy the link below:
- Mfr.Part #
- 282843-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 7P SIDE ENT 10.16MM PCB
- Stock
- 26,750
- In Stock ：
- 26,750
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Mating Orientation :
- Horizontal with Board
- Number of Levels :
- 1
- ELV :
- Compliant
- Screw Thread :
- M3
- Packaging :
- Bulk
- Published :
- 2007
- Wire Termination :
- Screw - Rising Cage Clamp
- Screw Material - Plating :
- Brass - Nickel Plated
- Number of Contacts :
- 7
- Number of Rows :
- 1
- Flammability Rating :
- UL94 V-0
- Max Current Rating :
- 17.5A
- Wire Cross Section :
- 2.5 mm2
- Pitch :
- 0.400 10.16mm
- Orientation :
- Straight
- Number of Ways :
- 7
- Mount :
- Through Hole
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Material :
- Brass
- Safety Approval :
- UL
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Contact Plating :
- Tin
- Wire Gauge (Max) :
- 30 AWG
- Radiation Hardening :
- No
- RoHS Status :
- RoHS Compliant
- Color :
- Green
- Connector Type :
- Receptacle
- Current Rating :
- 17.5A
- Clamp Material - Plating :
- Brass - Nickel Plated
- Contact Material - Plating :
- Brass - Tin Plated
- Length - Tail :
- 3.5mm
- Series :
- Buchanan
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 12 Weeks
- Wire Gauge :
- 12-30 AWG
- Voltage - Rated :
- 600V
- Feature :
- Interlocking (Side)
- Termination :
- Screw
- Wire Gauge (Min) :
- 12 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- HTS Code :
- 8536.69.40.40
- Number of Decks :
- 1
- ECCN Code :
- EAR99
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Datasheets
- 282843-7
0.400 10.16mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282843-7 Overview
The packaging contains Receptacle.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Buchanan belongs to the Buchanan Series.In many ways, it is more powerful due to its Interlocking (Side) feature.There is a Through Hole mount on the part.
282843-7 Features
Buchanan series
282843-7 Applications
There are a lot of TE Connectivity AMP Connectors
282843-7 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
