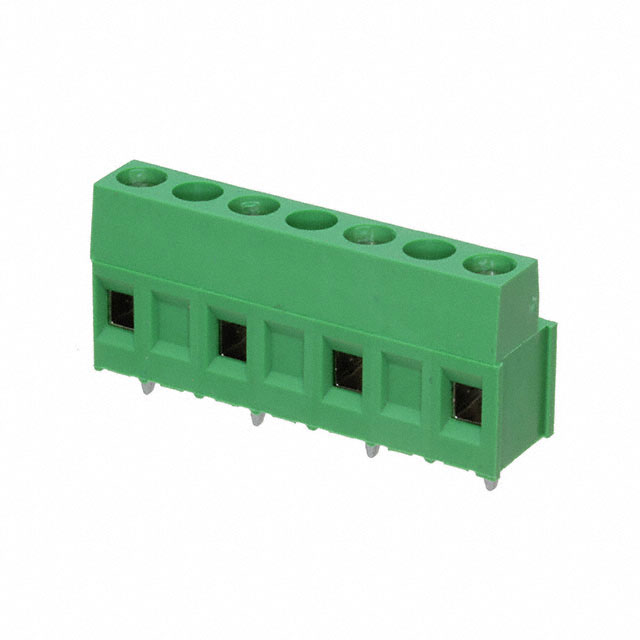

282842-4
Or copy the link below:
- Mfr.Part #
- 282842-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 4P SIDE ENTRY 10MM PCB
- Stock
- 960
- In Stock ：
- 960
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Voltage - Rated :
- 600V
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Plating :
- Brass
- Orientation :
- Straight
- Wire Gauge (Max) :
- 30 AWG
- Wire Gauge (Min) :
- 30 AWG
- Positions Per Level :
- 4
- Thread Size :
- M3
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Number of Positions Per Level :
- 4
- Number of Rows :
- 1
- Packaging :
- Bulk
- Housing Color :
- Green
- Feature :
- Interlocking (Side)
- Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Length - Tail :
- 3.5mm
- Mounting Type :
- Through Hole
- Number of Positions :
- 4
- Current :
- 17.5A
- Current Rating :
- 17.5A
- Mount :
- Through Hole
- Number of Levels :
- 1
- Contact Material :
- Brass
- Screw Thread :
- M3
- Factory Lead Time :
- 12 Weeks
- Screw Material - Plating :
- Brass - Nickel Plated
- Pitch :
- 0.394 10.00mm
- Color :
- Green
- Max Current Rating :
- 17.5A
- Series :
- Buchanan
- Contact Plating :
- Tin
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Published :
- 2007
- Wire Termination :
- Screw - Rising Cage Clamp
- Radiation Hardening :
- No
- Voltage :
- 600V
- Number of Circuits :
- 4
- RoHS Status :
- RoHS Compliant
- Clamp Material - Plating :
- Brass - Nickel Plated
- Contact Material - Plating :
- Brass - Tin Plated
- Connector Type :
- Receptacle
- Mating Orientation :
- Horizontal with Board
- Number of Contacts :
- 4
- Wire Gauge :
- 12-30 AWG
- Max Voltage Rating (AC) :
- 600V
- Datasheets
- 282842-4
0.394 10.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282842-4 Overview
Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Buchanan Series, it can be found in this category.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Through Hole mounts the part.Circuits number 4 in the part.
282842-4 Features
Buchanan series
282842-4 Applications
There are a lot of TE Connectivity AMP Connectors
282842-4 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
