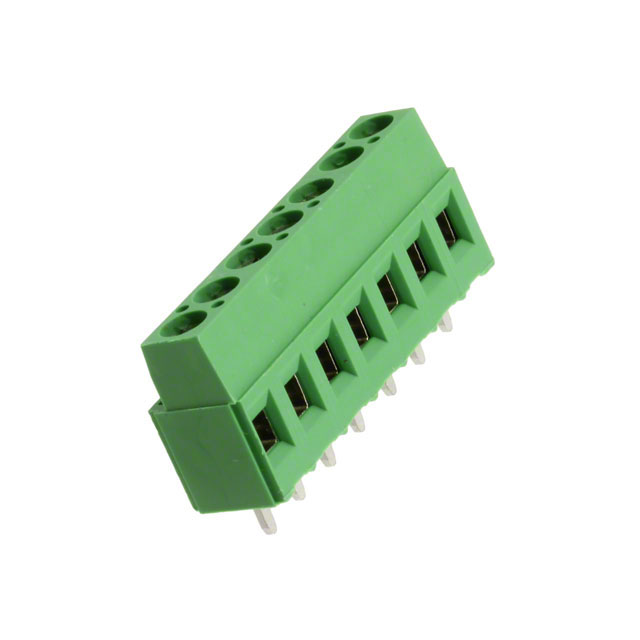

282841-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Clamp Material - Plating :

Brass - Nickel Plated

RoHS Status :

RoHS Compliant

Flammability Rating :

UL94 V-0

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Wire Gauge (Max) :

30 AWG

Pitch :

0.200 5.08mm

Color :

Green

Safety Approval :

UL

Number of Rows :

1

Additional Feature :

PA6-6, 94V-0

Orientation :

Straight

ECCN Code :

EAR99

Mating Orientation :

Horizontal with Board

Wire Cross Section :

2.5 mm2

Number of Contacts :

7

Number of Levels :

1

Packaging :

Bulk

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Published :

2007

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Length - Tail :

3.5mm

Min Operating Temperature :

-40°C

Termination :

Solder

Housing Material :

Polyamide (PA66), Nylon 6/6

Max Operating Temperature :

105°C

Contact Plating :

Tin

Series :

Buchanan

Screw Thread :

M3

Number of Decks :

1

Max Current Rating :

17.5A

Lead Free :

Lead Free

Wire Gauge (Min) :

12 AWG

Feature :

Interlocking (Side)

HTS Code :

8536.69.40.40

Mounting Type :

Through Hole

Connector Type :

Receptacle

Voltage - Rated :

300V

Factory Lead Time :

12 Weeks

Contact Material - Plating :

Brass - Tin Plated

Contact Material :

Brass

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ELV :

Compliant

Radiation Hardening :

No

Wire Termination :

Screw - Rising Cage Clamp

Mount :

Through Hole

Max Voltage Rating (AC) :

300V

Wire Gauge :

12-30 AWG

Screw Material - Plating :

Brass - Nickel Plated

Number of Ways :

7

Current Rating :

17.5A
