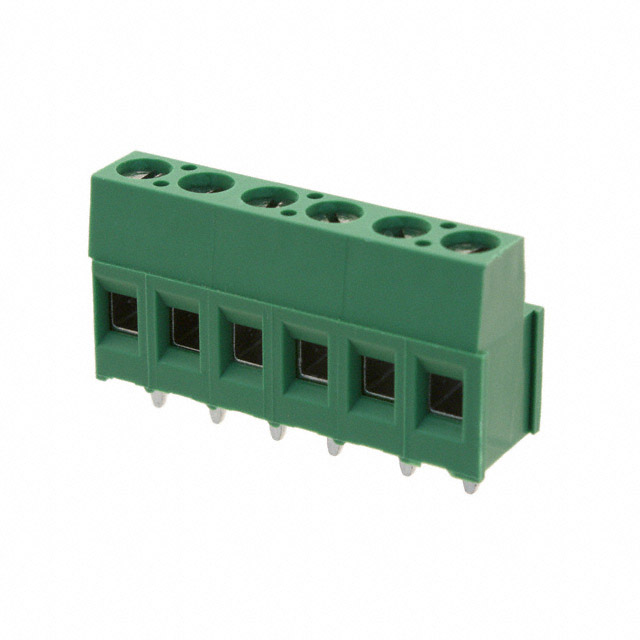

282841-6
Or copy the link below:
- Mfr.Part #
- 282841-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 6P SIDE ENT 5.08MM PCB
- Stock
- 12
- In Stock ：
- 12
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Wire Cross Section :
- 2.5 mm2
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Length :
- 30.48mm
- Contact Plating :
- Tin
- Current Rating :
- 17.5A
- Contact Material :
- Brass
- Max Supply Voltage (AC) :
- 300V
- RoHS Status :
- RoHS Compliant
- Number of Ways :
- 6
- Length - Tail :
- 3.5mm
- Pitch :
- 0.200 5.08mm
- Mating Orientation :
- Horizontal with Board
- Max Operating Temperature :
- 105°C
- Min Operating Temperature :
- -40°C
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Number of Rows :
- 1
- ECCN Code :
- EAR99
- Mount :
- Through Hole
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Voltage - Rated :
- 300V
- Connector Type :
- Receptacle
- Published :
- 2007
- Color :
- Green
- Feature :
- Interlocking (Side)
- Orientation :
- Straight
- Radiation Hardening :
- No
- Termination :
- Solder
- Number of Decks :
- 1
- REACH SVHC :
- Unknown
- Series :
- Buchanan
- Packaging :
- Bulk
- Depth :
- 9mm
- Contact Material - Plating :
- Brass - Tin Plated
- Mounting Type :
- Through Hole
- Wire Termination :
- Screw - Rising Cage Clamp
- Max Current Rating :
- 17.5A
- Factory Lead Time :
- 12 Weeks
- Lead Free :
- Lead Free
- Number of Levels :
- 1
- Wire Gauge (Min) :
- 12 AWG
- Wire/Cable Gauge :
- 30 AWG
- Safety Approval :
- UL
- Screw Material - Plating :
- Brass - Nickel Plated
- Number of Contacts :
- 6
- Clamp Material - Plating :
- Brass - Nickel Plated
- Flammability Rating :
- UL94 V-0
- Wire Gauge (Max) :
- 30 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Voltage Rating (AC) :
- 300V
- Screw Thread :
- M3
- Wire Gauge :
- 12-30 AWG
- Datasheets
- 282841-6
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282841-6 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -40°C degrees.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.
282841-6 Features
Buchanan series
282841-6 Applications
There are a lot of TE Connectivity AMP Connectors
282841-6 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
