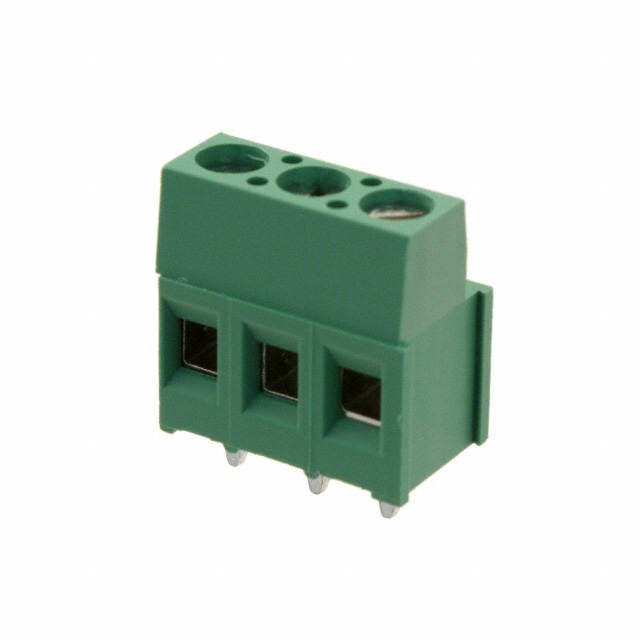

282841-3
Or copy the link below:
- Mfr.Part #
- 282841-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3P SIDE ENT 5.08MM PCB
- Stock
- 29,120
- In Stock ：
- 29,120
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Wire Gauge :
- 12-30 AWG
- Clamp Material - Plating :
- Brass - Nickel Plated
- Feature :
- Interlocking (Side)
- Number of Rows :
- 1
- Connector Type :
- Receptacle
- Current Rating :
- 17.5A
- Screw Thread :
- M3
- Wire Gauge (Min) :
- 12 AWG
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Wire Termination :
- Screw - Rising Cage Clamp
- ECCN Code :
- EAR99
- Number of Ways :
- 3
- Mating Orientation :
- Horizontal with Board
- Published :
- 2007
- REACH SVHC :
- Unknown
- Contact Material - Plating :
- Brass - Tin Plated
- Wire Cross Section :
- 2.5 mm2
- RoHS Status :
- RoHS Compliant
- Lead Free :
- Lead Free
- Mount :
- Through Hole
- Radiation Hardening :
- No
- Number of Decks :
- 1
- Length :
- 15.24mm
- Min Operating Temperature :
- -40°C
- Wire Gauge (Max) :
- 30 AWG
- Max Voltage Rating (AC) :
- 300V
- Series :
- Buchanan
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Packaging :
- Bulk
- Depth :
- 9mm
- Number of Levels :
- 1
- Mounting Type :
- Through Hole
- Contact Plating :
- Tin
- Termination :
- Solder
- Screw Material - Plating :
- Brass - Nickel Plated
- Wire/Cable Gauge :
- 30 AWG
- Max Supply Voltage (AC) :
- 300V
- Pitch :
- 0.200 5.08mm
- Safety Approval :
- UL
- Voltage - Rated :
- 300V
- Max Current Rating :
- 17.5A
- Factory Lead Time :
- 12 Weeks
- Contact Material :
- Brass
- Max Operating Temperature :
- 105°C
- Additional Feature :
- PA6-6, 94V-0
- Number of Contacts :
- 3
- Orientation :
- Straight
- Color :
- Green
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Tail :
- 3.5mm
- Datasheets
- 282841-3
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282841-3 Overview
It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Buchanan Series of products.In addition, there are other features such as PA6-6, 94V-0, to mention only a few.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -40°C.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.
282841-3 Features
Buchanan series
282841-3 Applications
There are a lot of TE Connectivity AMP Connectors
282841-3 Terminal Blocks applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
