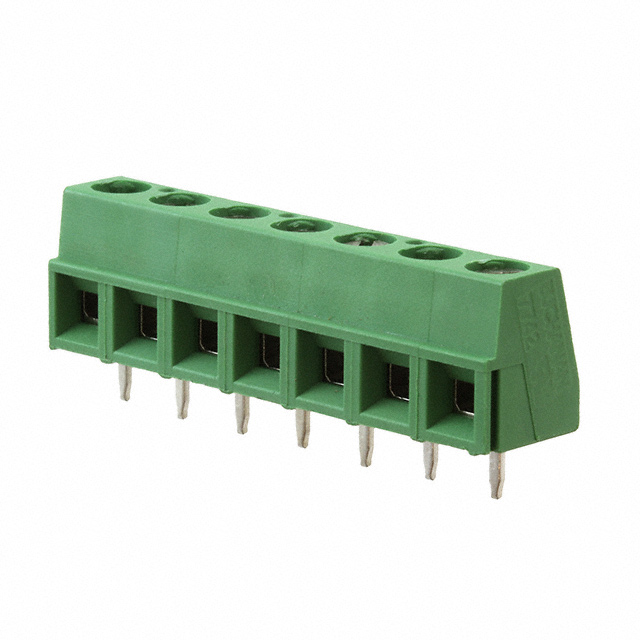

282837-7
Or copy the link below:
- Mfr.Part #
- 282837-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 7P SIDE ENT 5.08MM PCB
- Stock
- 1,242
- In Stock ：
- 1,242
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Termination :
- Solder
- Contact Material :
- Brass
- Mating Orientation :
- Horizontal with Board
- Number of Contacts :
- 7
- Number of Levels :
- 1
- Current Rating :
- 13.5A
- Length - Tail :
- 3.5mm
- Housing Color :
- Green
- Series :
- Buchanan
- Length :
- 36.16mm
- Max Current Rating :
- 13.5A
- Screw Thread :
- M3
- Wire Gauge :
- 16-28 AWG
- Factory Lead Time :
- 12 Weeks
- RoHS Status :
- RoHS Compliant
- Plating :
- Brass
- Wire Termination :
- Screw - Rising Cage Clamp
- Depth :
- 8.2mm
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Orientation :
- Straight
- Mount :
- Through Hole
- Number of Positions Per Level :
- 7
- Thread Size :
- M3
- Clamp Material - Plating :
- Brass - Nickel Plated
- Pitch :
- 0.200 5.08mm
- Radiation Hardening :
- No
- Connector Type :
- Receptacle
- Contact Plating :
- Tin
- Voltage :
- 300V
- Lead Free :
- Lead Free
- Voltage - Rated :
- 250V
- Feature :
- Interlocking (Side)
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Number of Circuits :
- 7
- Mounting Type :
- Through Hole
- Screw Material - Plating :
- Brass - Nickel Plated
- Max Supply Voltage (AC) :
- 250V
- Wire Gauge (Max) :
- 28 AWG
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Color :
- Green
- Number of Rows :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2007
- Contact Material - Plating :
- Brass - Tin Plated
- Current :
- 13.5A
- Number of Positions :
- 7
- Positions Per Level :
- 7
- ELV :
- Compliant
- Wire Gauge (Min) :
- 30 AWG
- Packaging :
- Tray
- Datasheets
- 282837-7
0.200 5.08mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-28 AWG Buchanan
282837-7 Overview
This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the Buchanan Series.In many ways, Interlocking (Side) makes it more powerful.By Through Hole, the part is mounted.It consists of 7 circuits.
282837-7 Features
Buchanan series
282837-7 Applications
There are a lot of TE Connectivity AMP Connectors
282837-7 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
