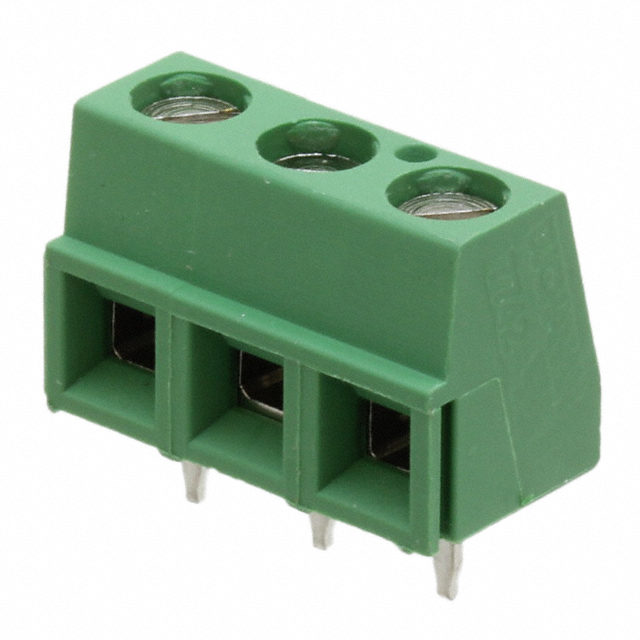

282837-3
Or copy the link below:
- Mfr.Part #
- 282837-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3P SIDE ENT 5.08MM PCB
- Stock
- 229,347
- In Stock ：
- 229,347
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Wire Termination :
- Screw - Rising Cage Clamp
- Housing Color :
- Green
- Approval Agency :
- UL
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- RoHS Status :
- RoHS Compliant
- Mount :
- Through Hole
- Clamp Material - Plating :
- Brass - Nickel Plated
- Number of Rows :
- 1
- Color :
- Green
- Number of Positions Per Level :
- 3
- REACH SVHC :
- Unknown
- Number of Levels :
- 1
- Published :
- 2007
- Voltage :
- 300V
- Screw Material - Plating :
- Brass - Nickel Plated
- Width :
- 8.2mm
- Thread Size :
- M3
- Lead Free :
- Lead Free
- Material :
- Nylon
- Max Voltage Rating (AC) :
- 250V
- Number of Poles :
- 3
- Max Current Rating :
- 13.5A
- Number of Circuits :
- 3
- Wire Gauge (Min) :
- 30 AWG
- Depth :
- 8.2mm
- Series :
- Buchanan
- Mounting Type :
- Through Hole
- Wire Gauge :
- 16-28 AWG
- Factory Lead Time :
- 21 Weeks
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Max Supply Voltage (AC) :
- 250V
- Packaging :
- Tray
- Radiation Hardening :
- No
- Length - Tail :
- 3.5mm
- Plating :
- Brass
- Current Rating :
- 13.5A
- ELV :
- Compliant
- Termination :
- Solder
- Number of Positions :
- 3
- Flammability Rating :
- UL94 V-0
- Orientation :
- Straight
- Positions Per Level :
- 3
- Feature :
- Interlocking (Side)
- Pitch :
- 0.200 5.08mm
- Voltage - Rated :
- 250V
- Number of Contacts :
- 3
- Wire Gauge (Max) :
- 28 AWG
- Mating Orientation :
- Horizontal with Board
- Wire/Cable Gauge :
- 30 AWG
- Contact Material :
- Brass
- Contact Material - Plating :
- Brass - Tin Plated
- Contact Plating :
- Tin
- Current :
- 13.5A
- Screw Thread :
- M3
- Connector Type :
- Receptacle
- Gender :
- Male
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Length :
- 15.84mm
- Datasheets
- 282837-3
0.200 5.08mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-28 AWG Buchanan
282837-3 Overview
The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the Buchanan Series.There are a number of advantages to its Interlocking (Side) feature.Part Through Hole is mounted to the part.It consists of circuits with a 3 value.
282837-3 Features
Buchanan series
282837-3 Applications
There are a lot of TE Connectivity AMP Connectors
282837-3 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
