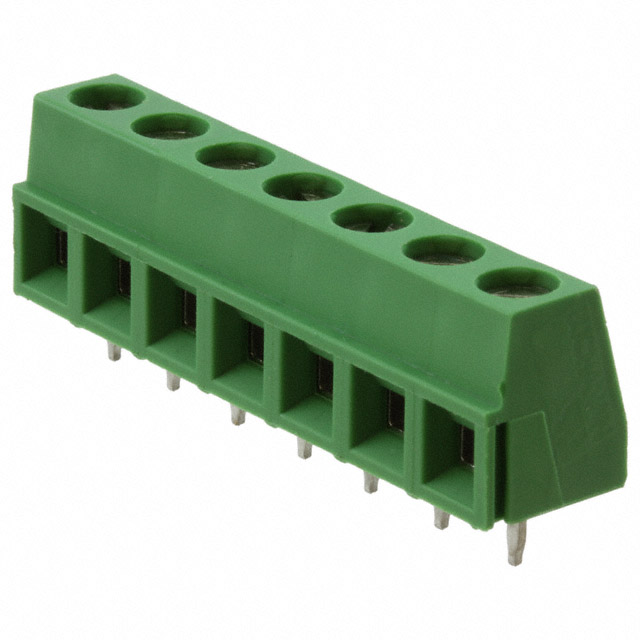

282836-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Product Category :

Fixed Terminal Blocks

Mounting Type :

BOARD

Number of Positions :

7 Position

Wire protection :

yes

Pins per row :

7

Number of Decks :

1

Cross section (flexible) (max.) :

1.31mm²

Factory Lead Time :

9 Weeks, 2 Days

Series :

Buchanan

Number of Contacts :

7(POS)

Width :

10mm

Contact Material :

Brass

Cross section (inflexible) (max.) :

1.31mm²

Depth :

8.2mm

Rated Current :

13.5 A

Mounting Style :

Through Hole

Flammability Rating :

UL 94 V-0

ECCN Code :

EAR99

Product Length :

35 mm

Operating Temp Range :

-40C to 110C

AWG (min.) :

30

Contact Pitch (mm) :

5(mm)

Weight :

6.012

Number of Rows :

1

Additional Feature :

STANDARD: IEC 998-1/998-2-1, PA 6-6, 94V-0

Wire Cross Section :

1.5 mm2

Product Length (mm) :

35(mm)

Mounting :

Through Hole

Packaging :

Box

Rad Hardened :

No

Wire Gauge :

15 AWG

Enclosure material :

Polyamide 6.6

Min. stripping length :

10mm

RoHS :

Details

Nominal voltage :

300V AC

Subcategory :

Terminal Blocks

Safety Approval :

UL

No. of rows :

1

Housing Material :

Polyamide 6/6

Type :

282836-7

Nominal current :

13.5A

Reach Compliance Code :

not_compliant

Product Type :

Fixed Terminal Blocks

Body Orientation :

Straight

Number of Contact Rows :

1

Housing Color :

Green

CS :

5mm

Operating Voltage (Max) :

300VAC

Termination Method :

Solder

Voltage Rating :

300 V ac

Cross section (flexible) (min.) :

0.05mm²

Cross section (inflexible) (min.) :

0.05mm²

Features :

Stackable

Connection Method :

Screw Clamp

Mounting Angle :

Horizontal

Length :

35mm

Nominal current - rounded value :

13.5A

Fastening Method :

Screw

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Number of Ways :

7

Wire Size :

30 to 16, 30 AWG

Base/Housing Material :

Polyamide 66

Pitch :

5.0000 mm

HTS Code :

8536.69.40.40

Contact Plating :

Tin

Brand Name :

Buchanan

Connection :

Screw terminal,Print

Content :

1pc(s)

Product Depth (mm) :

8.2(mm)

AWG max. :

16

Gender :

HDR

Rated Voltage :

300 V

Product Height (mm) :

10(mm)

Termination Style :

Solder Pin

Product :

Fixed Terminal Blocks

Manufacturer part # :

282836-7

Brand :

TE Connectivity

Stripping length (max.) :

10mm

Current Rating :

13.5A

Current Rating (Max) :

13.5/Contact(A)
