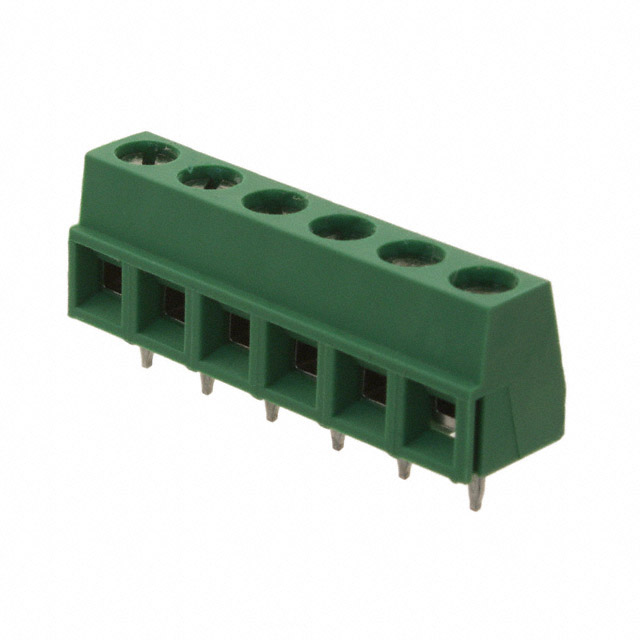

282836-6
Or copy the link below:
- Mfr.Part #
- 282836-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 6POS SIDE ENTRY 5MM PCB
- Stock
- 7,266
- In Stock ：
- 7,266
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Factory Lead Time :
- 12 Weeks
- Current Rating :
- 13.5A
- Length :
- 30mm
- Screw Thread :
- M3
- Pitch :
- 0.197 5.00mm
- Connector Type :
- Receptacle
- Contact Material - Plating :
- Brass - Tin Plated
- Approval Agency :
- UL
- Wire Termination :
- Screw - Rising Cage Clamp
- Mating Orientation :
- Horizontal with Board
- Termination :
- Solder
- Width :
- 10mm
- Orientation :
- Straight
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Nylon
- Mounting Type :
- Through Hole
- Number of Contacts :
- 6
- Number of Decks :
- 1
- Max Current Rating :
- 13.5A
- Max Supply Voltage (AC) :
- 300V
- ELV :
- Compliant
- Max Voltage Rating (AC) :
- 300V
- REACH SVHC :
- Unknown
- Screw Material - Plating :
- Brass - Nickel Plated
- Depth :
- 8.2mm
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Feature :
- Interlocking (Side)
- Voltage - Rated AC :
- 250V
- Number of Ways :
- 6
- Number of Levels :
- 1
- Wire/Cable Gauge :
- 15 AWG
- Number of Rows :
- 1
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Contact Plating :
- Tin
- Wire Gauge (Min) :
- 16 AWG
- Series :
- Buchanan
- RoHS Status :
- RoHS Compliant
- Radiation Hardening :
- No
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Voltage - Rated DC :
- 250V
- Flammability Rating :
- UL94 V-0
- ECCN Code :
- EAR99
- Packaging :
- Tray
- Mount :
- Through Hole
- Safety Approval :
- UL
- Color :
- Green
- Wire Gauge :
- 16-30 AWG
- Lead Pitch :
- 5mm
- Wire Gauge (Max) :
- 30 AWG
- Published :
- 2002
- Length - Tail :
- 3.5mm
- Contact Material :
- Brass
- Clamp Material - Plating :
- Brass - Nickel Plated
- Lead Free :
- Lead Free
- Datasheets
- 282836-6
0.197 5.00mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
282836-6 Overview
A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the Buchanan Series of products.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.
282836-6 Features
Buchanan series
282836-6 Applications
There are a lot of TE Connectivity AMP Connectors
282836-6 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
