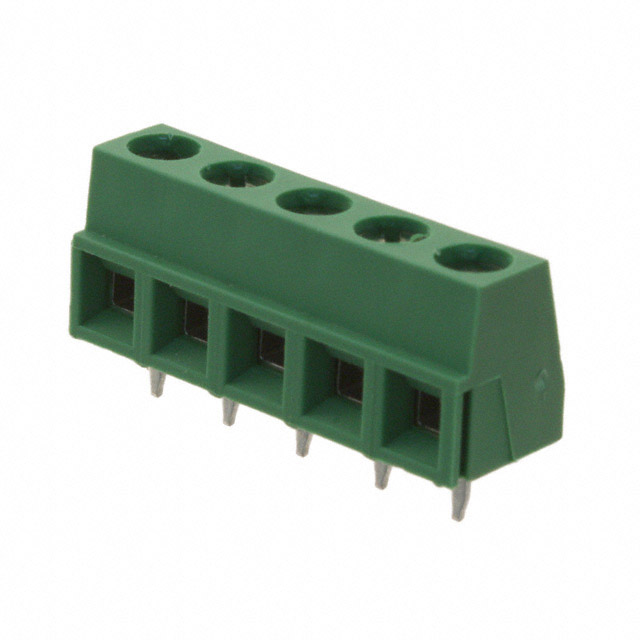

282836-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Voltage - Rated AC :

250V

Current Rating :

13.5A

Screw Thread :

M3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Supply Voltage (AC) :

300V

Max Current Rating :

13.5A

Number of Ways :

5

Termination :

Solder

REACH SVHC :

Unknown

Number of Decks :

1

Safety Approval :

UL

Lead Pitch :

5mm

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Number of Contacts :

5

RoHS Status :

RoHS Compliant

Length :

25mm

Wire Gauge :

16-30 AWG

Radiation Hardening :

No

Max Voltage Rating (AC) :

300V

Housing Material :

Polyamide (PA66), Nylon 6/6

Width :

10mm

Packaging :

Tray

Factory Lead Time :

21 Weeks

Torque - Screw :

0.68 Nm (6 Lb-In)

Length - Tail :

3.5mm

Mating Orientation :

Horizontal with Board

Wire Gauge (Max) :

30 AWG

Mount :

Through Hole

Flammability Rating :

UL94 V-0

Orientation :

Straight

Color :

Green

Contact Material :

Brass

Mounting Type :

Through Hole

Insulation Material :

Nylon

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Pitch :

0.197 5.00mm

Wire Termination :

Screw - Rising Cage Clamp

Wire Gauge (Min) :

16 AWG

ECCN Code :

EAR99

Number of Rows :

1

Depth :

8.2mm

Series :

Buchanan

Voltage - Rated DC :

250V

Clamp Material - Plating :

Brass - Nickel Plated

Connector Type :

Receptacle

Screw Material - Plating :

Brass - Nickel Plated

Feature :

Interlocking (Side)

Contact Material - Plating :

Brass - Tin Plated

Number of Levels :

1

Published :

2002

Wire/Cable Gauge :

15 AWG

Contact Plating :

Tin

ELV :

Compliant
