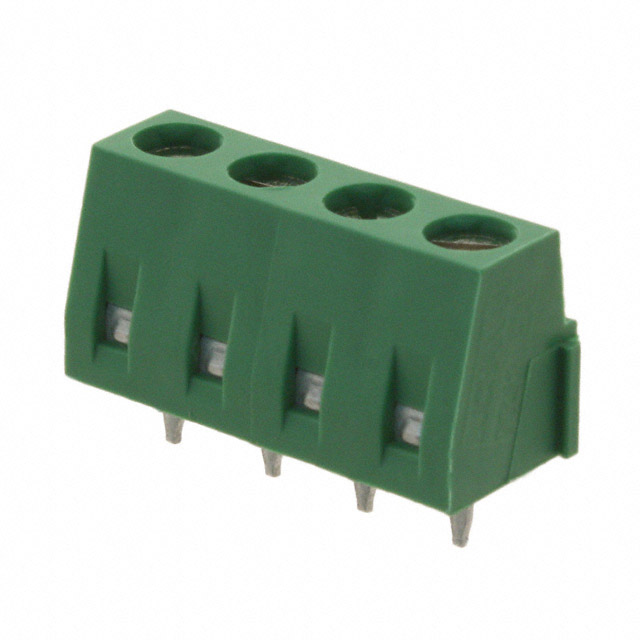

282836-4
Or copy the link below:
- Mfr.Part #
- 282836-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 4POS SIDE ENTRY 5MM PCB
- Stock
- 2,550
- In Stock ：
- 2,550
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Lead Pitch :
- 5mm
- Radiation Hardening :
- No
- Contact Plating :
- Tin
- Wire Termination :
- Screw - Rising Cage Clamp
- Series :
- Buchanan
- Wire/Cable Gauge :
- 30 AWG
- Mounting Type :
- Through Hole
- Max Current Rating :
- 13.5A
- Number of Ways :
- 4
- Voltage - Rated DC :
- 250V
- Color :
- Green
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 12 Weeks
- Safety Approval :
- UL
- Wire Gauge :
- 16-30 AWG
- Approval Agency :
- UL
- Width :
- 10mm
- Wire Gauge (Max) :
- 30 AWG
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Max Supply Voltage (AC) :
- 300V
- Current Rating :
- 13.5A
- Number of Decks :
- 1
- RoHS Status :
- RoHS Compliant
- Length :
- 20mm
- Max Voltage Rating (AC) :
- 300V
- Mating Orientation :
- Horizontal with Board
- Screw Thread :
- M3
- Length - Tail :
- 3.5mm
- Lead Free :
- Lead Free
- Connector Type :
- Receptacle
- Number of Contacts :
- 4
- Number of Levels :
- 1
- Contact Material - Plating :
- Brass - Tin Plated
- Published :
- 2002
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Screw Material - Plating :
- Brass - Nickel Plated
- Wire Gauge (Min) :
- 30 AWG
- Insulation Material :
- Nylon
- Clamp Material - Plating :
- Brass - Nickel Plated
- Contact Material :
- Brass
- Orientation :
- Straight
- Pitch :
- 0.197 5.00mm
- ELV :
- Compliant
- REACH SVHC :
- Unknown
- ECCN Code :
- EAR99
- Voltage - Rated AC :
- 250V
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Packaging :
- Tray
- Feature :
- Interlocking (Side)
- Number of Rows :
- 1
- Depth :
- 8.2mm
- Termination :
- Screw, Solder
- Datasheets
- 282836-4
0.197 5.00mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
282836-4 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
282836-4 Features
Buchanan series
282836-4 Applications
There are a lot of TE Connectivity AMP Connectors
282836-4 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
