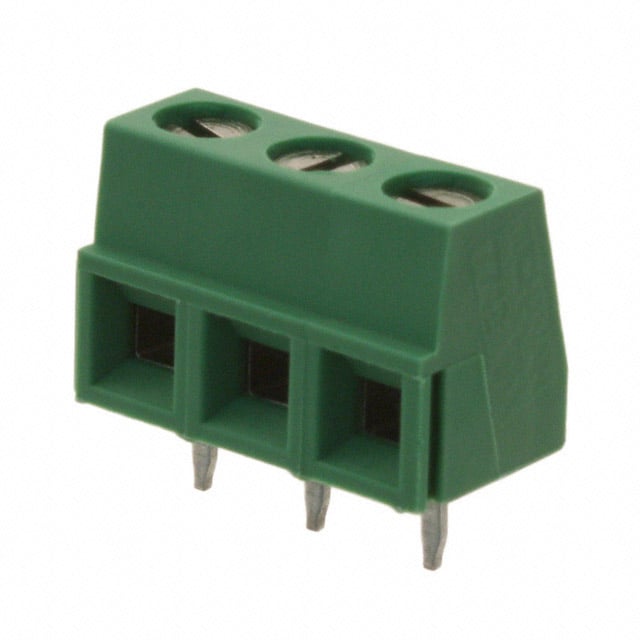

282836-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Base/Housing Material :

Polyamide 66

Enclosure material :

Polyamide 6.6

Rad Hardened :

No

Current Rating (Max) :

13.5/Contact(A)

Housing Material :

Polyamide 6/6

Termination Style :

Solder Pin

Cross section (flexible) (min.) :

1.31mm²

Product Length :

15 mm

HTS Code :

8536.69.40.40

Mounting Angle :

Horizontal

Operating Voltage (Max) :

300VAC

Nominal voltage :

300V AC

Number of Rows :

1

Length :

15mm

No. of rows :

1

Pins per row :

3

Cross section (inflexible) (max.) :

0.05mm²

Number of Positions :

3 Position

Nominal current - rounded value :

13.5A

Voltage Rating :

300 V ac

Product Category :

Fixed Terminal Blocks

AWG (min.) :

30

CS :

5mm

Wire protection :

yes

Subcategory :

Terminal Blocks

Body Orientation :

Straight

Connection Method :

Screw Clamp

Gender :

HDR

Number of Contacts :

3(POS)

Product Height (mm) :

10(mm)

Rated Voltage :

300 V

Pitch :

5.0000 mm

Nominal current :

13.5A

Number of Ways :

3

Depth :

8.2mm

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Content :

1pc(s)

Fastening Method :

Screw

Number of Contact Rows :

1

Weight :

2.577

Mounting Style :

Through Hole

Series :

Buchanan

Flammability Rating :

UL 94 V-0

Mounting :

Through Hole

Wire Gauge :

15 AWG

Termination Method :

Solder

Width :

10mm

ECCN Code :

EAR99

Brand Name :

Buchanan

Housing Color :

Green

Mounting Type :

BOARD

Connection :

Screw terminal,Print

Wire Cross Section :

1.5 mm2

Manufacturer part # :

282836-3

Number of Decks :

1

Product Type :

Fixed Terminal Blocks

Safety Approval :

UL

Product Depth (mm) :

8.2(mm)

Wire Size :

30 to 16, 30 AWG

Product Length (mm) :

15(mm)

Rated Current :

13.5 A

Stripping length (max.) :

10mm

Contact Plating :

Tin

Features :

Stackable

Current Rating :

13.5A

RoHS :

Details

Factory Lead Time :

13 Weeks

Additional Feature :

STANDARD: IEC 998-1/998-2-1, PA 6-6, 94V-0

Type :

Eurostyle Block

Cross section (inflexible) (min.) :

0.05mm²

Product :

Fixed Terminal Blocks

Contact Material :

Brass

Cross section (flexible) (max.) :

1.31mm²

Min. stripping length :

10mm

Brand :

TE Connectivity

Reach Compliance Code :

not_compliant

AWG max. :

16

Contact Pitch (mm) :

5(mm)
