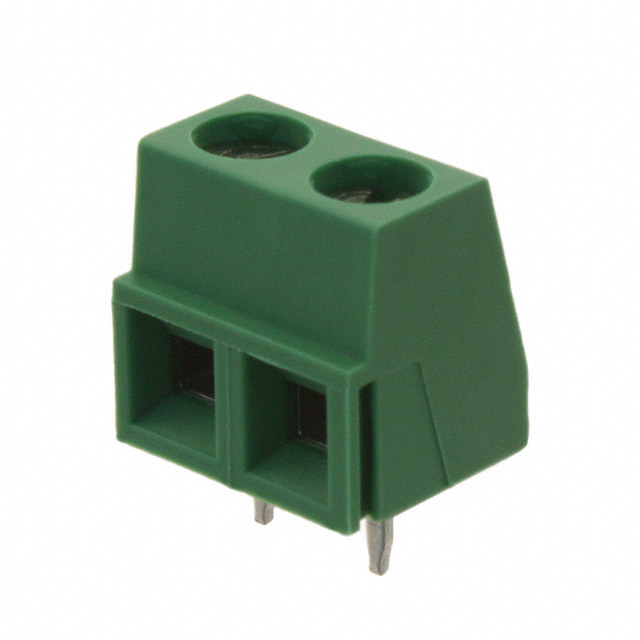

282836-2
Or copy the link below:
- Mfr.Part #
- 282836-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2POS SIDE ENTRY 5MM PCB
- Stock
- 58,291
- In Stock ：
- 58,291
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- HTS Code :
- 8536.69.40.40
- Length :
- 10.6mm
- Width :
- 10mm
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Orientation :
- Straight
- Max Supply Voltage (AC) :
- 300V
- Number of Levels :
- 1
- RoHS Status :
- RoHS Compliant
- Approval Agency :
- UL
- Number of Rows :
- 1
- Wire Termination :
- Screw - Rising Cage Clamp
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Screw Thread :
- M3
- ELV :
- Compliant
- Current Rating :
- 13.5A
- Contact Material :
- Brass
- Screw Material - Plating :
- Brass - Nickel Plated
- Published :
- 2002
- Depth :
- 8.2mm
- Number of Decks :
- 1
- Pitch :
- 0.197 5.00mm
- Mount :
- Through Hole
- Factory Lead Time :
- 7 Weeks
- Wire/Cable Gauge :
- 30 AWG
- Termination :
- Solder
- Wire Gauge (Min) :
- 30 AWG
- REACH SVHC :
- Unknown
- Safety Approval :
- UL
- Wire Gauge :
- 16-30 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Feature :
- Interlocking (Side)
- Packaging :
- Tray
- Mounting Type :
- Through Hole
- Voltage - Rated DC :
- 250V
- Voltage - Rated AC :
- 250V
- Length - Tail :
- 3.5mm
- Number of Ways :
- 2
- Wire Gauge (Max) :
- 30 AWG
- Insulation Material :
- Nylon
- Max Current Rating :
- 13.5A
- Color :
- Green
- ECCN Code :
- EAR99
- Connector Type :
- Receptacle
- Contact Plating :
- Tin
- Mating Orientation :
- Horizontal with Board
- Max Operating Temperature :
- 105°C
- Radiation Hardening :
- No
- Number of Contacts :
- 2
- Series :
- Buchanan
- Clamp Material - Plating :
- Brass - Nickel Plated
- Contact Material - Plating :
- Brass - Tin Plated
- Lead Pitch :
- 5mm
- Min Operating Temperature :
- -40°C
- Max Voltage Rating (AC) :
- 300V
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Datasheets
- 282836-2
0.197 5.00mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
282836-2 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the Buchanan Series.If the temperature is below 105°C, it's best to use it.-40°C is the minimum temperature for this device.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
282836-2 Features
Buchanan series
282836-2 Applications
There are a lot of TE Connectivity AMP Connectors
282836-2 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
