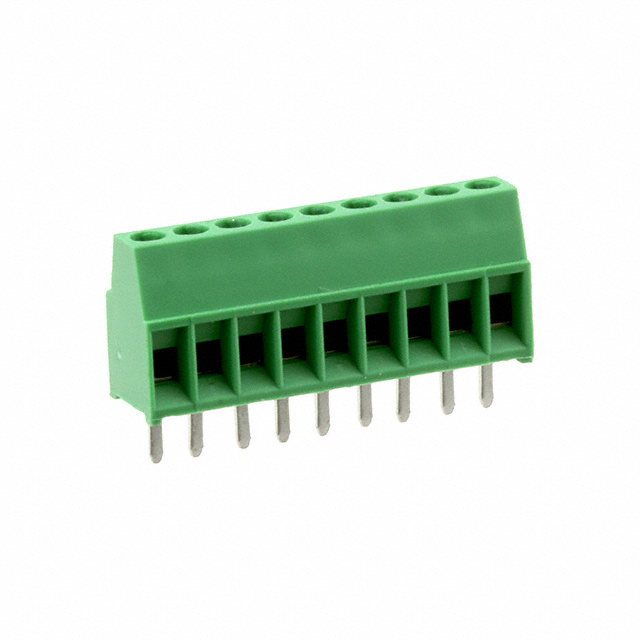

282834-9
Or copy the link below:
- Mfr.Part #
- 282834-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 9P SIDE ENT 2.54MM PCB
- Stock
- 592
- In Stock ：
- 592
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Current Rating :
- 10A
- Number of Contacts :
- 9
- Plating :
- Brass, Steel
- Mount :
- Through Hole
- Packaging :
- Bulk
- Screw Thread :
- M1.6
- Number of Rows :
- 1
- Number of Decks :
- 1
- Max Current Rating :
- 10A
- Published :
- 2007
- Wire Gauge :
- 16-30 AWG
- Contact Material - Plating :
- Brass - Tin Plated
- Pitch :
- 0.100 2.54mm
- Wire Gauge (Min) :
- 16 AWG
- Screw Material - Plating :
- Steel, Stainless
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Material :
- Brass
- Radiation Hardening :
- No
- Length - Tail :
- 3.4mm
- Mounting Type :
- Through Hole
- Series :
- Buchanan
- Factory Lead Time :
- 12 Weeks
- Termination :
- Screw
- Voltage - Rated :
- 150V
- Contact Plating :
- Tin
- Number of Ways :
- 9
- Wire Gauge (Max) :
- 30 AWG
- Number of Levels :
- 1
- Flammability Rating :
- UL94 V-0
- Wire Termination :
- Screw - Rising Cage Clamp
- Connector Type :
- Receptacle
- Mating Orientation :
- Horizontal with Board
- Operating Temperature :
- -40°C~105°C
- Clamp Material - Plating :
- Brass - Nickel Plated
- Orientation :
- Straight
- Torque - Screw :
- 0.2 Nm (1.7 Lb-In)
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- ELV :
- Compliant
- Color :
- Green
- Safety Approval :
- UL
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Datasheets
- 282834-9
0.100 2.54mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
282834-9 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.
282834-9 Features
Buchanan series
282834-9 Applications
There are a lot of TE Connectivity AMP Connectors
282834-9 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
