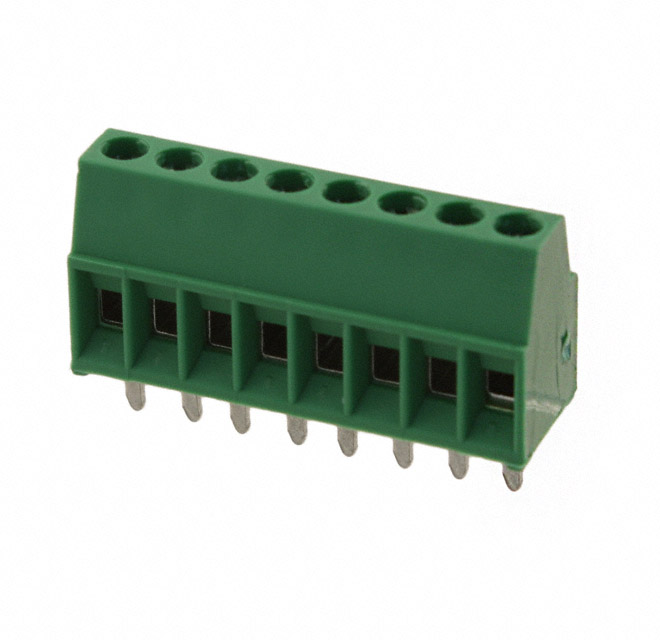

282834-8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Orientation :

Straight

Approval Agency :

UL

Number of Ways :

8

Max Current Rating :

10A

Gender :

FEMALE

Published :

2007

Termination :

Screw, Solder

Series :

Buchanan

Plating :

Brass, Steel

Screw Material - Plating :

Steel, Stainless

Housing Material :

Polyamide (PA66), Nylon 6/6

ECCN Code :

EAR99

Depth :

6.5mm

Voltage - Rated AC :

150V

Length :

20.78mm

Contact Plating :

Tin

Color :

Green

Wire Gauge (Max) :

30 AWG

Number of Rows :

1

Mating Orientation :

Horizontal with Board

Contact Material - Plating :

Brass - Tin Plated

Radiation Hardening :

No

Screw Thread :

M1.6

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Contact Material :

Brass

Number of Levels :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

12 Weeks

Number of Contacts :

8

Max Voltage Rating (AC) :

150V

Mounting Type :

Through Hole

Max Supply Voltage (AC) :

150V

Wire/Cable Gauge :

30 AWG

Packaging :

Bulk

Wire Gauge (Min) :

16 AWG

Pitch :

0.100 2.54mm

Safety Approval :

UL

Clamp Material - Plating :

Brass - Nickel Plated

Operating Temperature :

-40°C~105°C

Wire Gauge :

16-30 AWG

Wire Termination :

Screw - Rising Cage Clamp

Connector Type :

Receptacle

Torque - Screw :

0.2 Nm (1.7 Lb-In)

Flammability Rating :

UL94 V-0

Material :

Nylon

Length - Tail :

3.4mm

Mount :

PCB, Through Hole

Current Rating :

10A

REACH SVHC :

Unknown

RoHS Status :

RoHS Compliant

Lead Free :

Lead Free

Number of Decks :

1

Voltage - Rated :

150V
