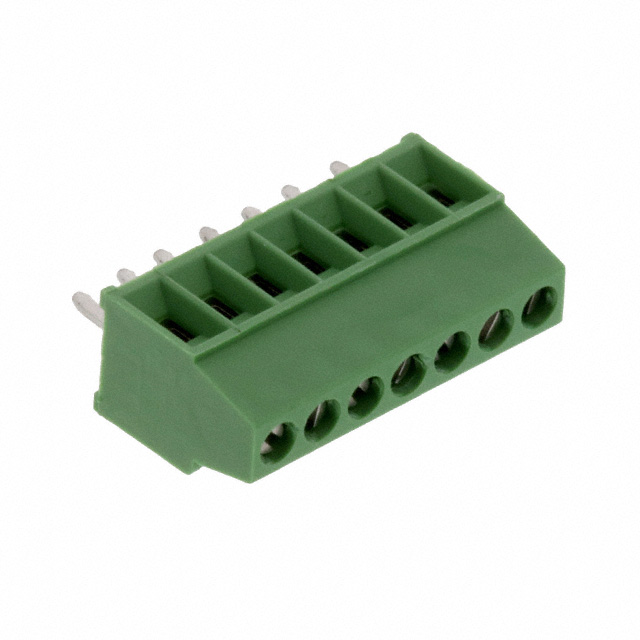

282834-7
Or copy the link below:
- Mfr.Part #
- 282834-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 7P SIDE ENT 2.54MM PCB
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Termination :
- Screw
- Contact Material - Plating :
- Brass - Tin Plated
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Number of Levels :
- 1
- Number of Ways :
- 7
- Wire Gauge (Max) :
- 16 AWG
- RoHS Status :
- RoHS Compliant
- Pitch :
- 0.100 2.54mm
- Plating :
- Brass, Steel
- Mating Orientation :
- Horizontal with Board
- Operating Temperature :
- -40°C~105°C
- Number of Decks :
- 1
- Wire Gauge :
- 16-30 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Screw Material - Plating :
- Steel, Stainless
- Number of Rows :
- 1
- Series :
- Buchanan
- Contact Plating :
- Tin
- ECCN Code :
- EAR99
- Max Current Rating :
- 10A
- Contact Material :
- Brass
- HTS Code :
- 8536.69.40.40
- Safety Approval :
- UL
- Clamp Material - Plating :
- Brass - Nickel Plated
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Screw Thread :
- M1.6
- ELV :
- Compliant
- Flammability Rating :
- UL94 V-0
- Torque - Screw :
- 0.2 Nm (1.7 Lb-In)
- Current Rating :
- 10A
- Number of Contacts :
- 7
- Length - Tail :
- 3.4mm
- Mounting Type :
- Through Hole
- Color :
- Green
- Wire Gauge (Min) :
- 16 AWG
- Mount :
- Through Hole
- Connector Type :
- Receptacle
- Wire Termination :
- Screw - Rising Cage Clamp
- Voltage - Rated :
- 150V
- Orientation :
- Straight
- Lead Free :
- Lead Free
- Factory Lead Time :
- 12 Weeks
- Radiation Hardening :
- No
- Published :
- 2002
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Datasheets
- 282834-7
0.100 2.54mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
282834-7 Overview
The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Buchanan Series.Part Through Hole is mounted to the part.As a result, the device runs at -40°C~105°C Operating Temperature.
282834-7 Features
Buchanan series
282834-7 Applications
There are a lot of TE Connectivity AMP Connectors
282834-7 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
