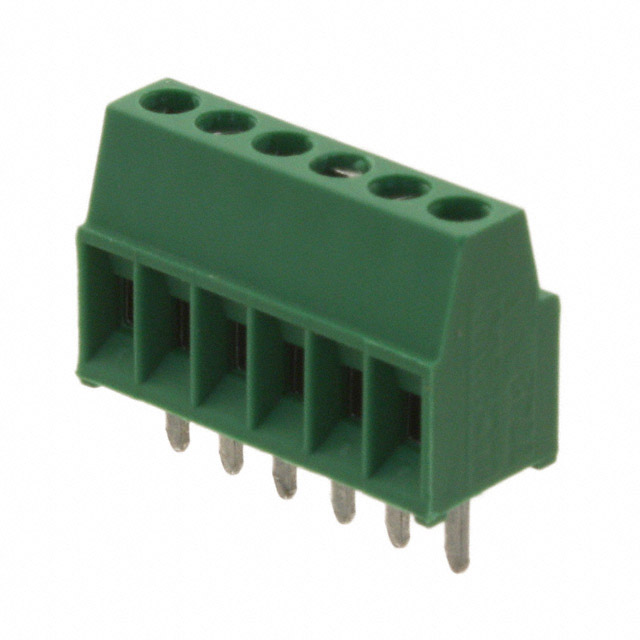

282834-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Max Supply Voltage (AC) :

150V

Contact Material :

Brass

Material :

Nylon

Operating Temperature :

-40°C~105°C

Series :

Buchanan

Width :

6.5mm

Number of Rows :

1

Number of Levels :

1

Radiation Hardening :

No

Flammability Rating :

UL94 V-0

Number of Decks :

1

Color :

Green

Screw Material - Plating :

Steel, Stainless

Mount :

Through Hole

REACH SVHC :

Unknown

Safety Approval :

UL

Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

ECCN Code :

EAR99

Pitch :

0.100 2.54mm

Contact Plating :

Tin

Connector Type :

Receptacle

ELV :

Compliant

Depth :

6.5mm

Max Current Rating :

10A

Mounting Type :

Through Hole

Number of Contacts :

6

Gender :

FEMALE

Plating :

Brass, Steel

RoHS Status :

RoHS Compliant

Wire Gauge (Min) :

16 AWG

Mating Orientation :

Horizontal with Board

Published :

2007

Torque - Screw :

0.2 Nm (1.7 Lb-In)

Factory Lead Time :

12 Weeks

Contact Material - Plating :

Brass - Tin Plated

Wire Termination :

Screw - Rising Cage Clamp

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Lead Free

Packaging :

Bulk

Length :

15.7mm

Screw Thread :

M1.6

Clamp Material - Plating :

Brass - Nickel Plated

Number of Ways :

6

Approval Agency :

UL

Wire/Cable Gauge :

30 AWG

Termination :

Solder

Orientation :

Straight

Current Rating :

10A

Length - Tail :

3.4mm

Wire Gauge (Max) :

30 AWG

Voltage - Rated :

150V

Housing Material :

Polyamide (PA66), Nylon 6/6

Wire Gauge :

16-30 AWG

Max Voltage Rating (AC) :

150V
