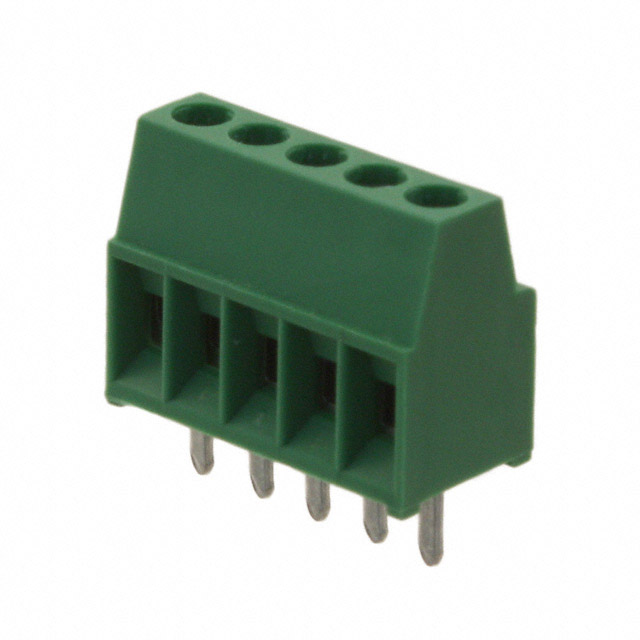

282834-5
Or copy the link below:
- Mfr.Part #
- 282834-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 5P SIDE ENT 2.54MM PCB
- Stock
- 4,579
- In Stock ：
- 4,579
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Max Current Rating :
- 10A
- Contact Plating :
- Tin
- Depth :
- 6.5mm
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Flammability Rating :
- UL94 V-0
- Number of Decks :
- 1
- Wire Gauge :
- 16-30 AWG
- Wire Gauge (Max) :
- 30 AWG
- Number of Contacts :
- 5
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Length - Tail :
- 3.4mm
- Wire Termination :
- Screw - Rising Cage Clamp
- Contact Material :
- Brass
- Screw Thread :
- M1.6
- REACH SVHC :
- Unknown
- Number of Levels :
- 1
- Plating :
- Brass, Steel
- Clamp Material - Plating :
- Brass - Nickel Plated
- Mating Orientation :
- Horizontal with Board
- Connector Type :
- Receptacle
- Contact Material - Plating :
- Brass - Tin Plated
- Color :
- Green
- Number of Ways :
- 5
- ELV :
- Compliant
- Wire Gauge (Min) :
- 16 AWG
- Pitch :
- 0.100 2.54mm
- Operating Temperature :
- -40°C~105°C
- Published :
- 2005
- ECCN Code :
- EAR99
- Wire/Cable Gauge :
- 30 AWG
- Torque - Screw :
- 0.2 Nm (1.7 Lb-In)
- Max Voltage Rating (AC) :
- 150V
- Factory Lead Time :
- 21 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Current Rating :
- 10A
- Voltage - Rated :
- 150V
- Approval Agency :
- UL
- Mounting Type :
- Through Hole
- Number of Rows :
- 1
- Orientation :
- Straight
- Radiation Hardening :
- No
- Max Supply Voltage (AC) :
- 150V
- RoHS Status :
- RoHS Compliant
- Length :
- 12.16mm
- Termination :
- Solder
- Mount :
- Through Hole
- Packaging :
- Bulk
- Screw Material - Plating :
- Steel, Stainless
- Series :
- Buchanan
- Safety Approval :
- UL
- Datasheets
- 282834-5
0.100 2.54mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
282834-5 Overview
Packaging for this item is Receptacle.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Buchanan Series.Through Hole is used to mount the part.In this case, the device operates at -40°C~105°C Operating Temperature.
282834-5 Features
Buchanan series
282834-5 Applications
There are a lot of TE Connectivity AMP Connectors
282834-5 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
