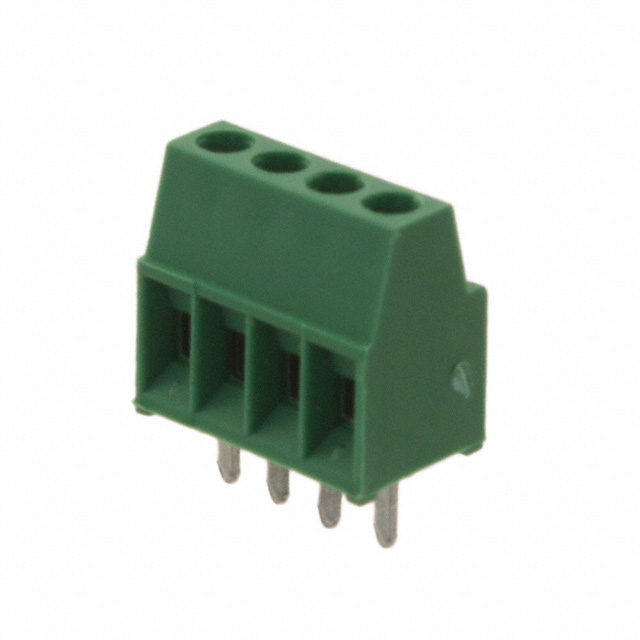

282834-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Mounting Type :

Through Hole

Wire Gauge (Min) :

16 AWG

Termination :

Solder

Max Current Rating :

10A

Max Supply Voltage (AC) :

150V

Radiation Hardening :

No

Lead Free :

Lead Free

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Manufacturer Package Identifier :

C-282834

REACH SVHC :

Unknown

Wire Termination :

Screw - Rising Cage Clamp

Series :

Buchanan

Voltage - Rated :

150V

Plating :

Brass, Steel

Height :

10mm

Torque - Screw :

0.2 Nm (1.7 Lb-In)

Connector Type :

Receptacle

Wire/Cable Gauge :

30 AWG

Clamp Material - Plating :

Brass - Nickel Plated

ECCN Code :

EAR99

Length :

10.62mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2007

Contact Material - Plating :

Brass - Tin Plated

RoHS Status :

RoHS Compliant

Orientation :

Straight

Max Voltage Rating (AC) :

150V

Contact Material :

Brass

Flammability Rating :

UL94 V-0

Safety Approval :

UL

Mating Orientation :

Horizontal with Board

Number of Levels :

1

Screw Material - Plating :

Steel, Stainless

Mount :

Through Hole

Pitch :

0.100 2.54mm

Approval Agency :

UL

ELV :

Compliant

Number of Contacts :

4

Screw Thread :

M1.6

Color :

Green

Lead Pitch :

2.54mm

Width :

6.5mm

Depth :

6.5mm

Factory Lead Time :

12 Weeks

Operating Temperature :

-40°C~105°C

Packaging :

Bulk

Number of Rows :

1

Number of Ways :

4

Housing Material :

Polyamide (PA66), Nylon 6/6

Wire Gauge (Max) :

30 AWG

Contact Plating :

Tin

Number of Decks :

1

Current Rating :

10A

Wire Gauge :

16-30 AWG

Length - Tail :

3.4mm
