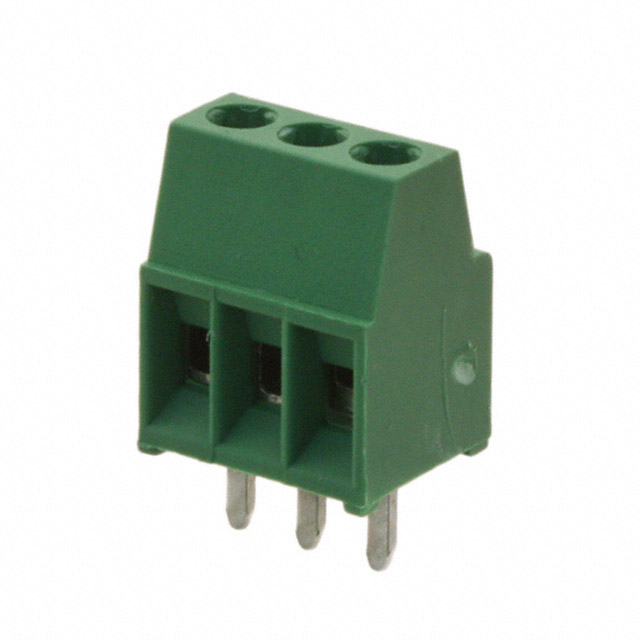

282834-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

RoHS :

Details

Number of Rows :

1

Contact Plating :

Tin

Housing Color :

Green

Depth :

6.5mm

Reach Compliance Code :

not_compliant

Body Orientation :

Straight

Product Length (mm) :

8.08(mm)

Product Category :

Fixed Terminal Blocks

Number of Contacts :

3(POS)

Base/Housing Material :

Polyamide 66

Cross section (flexible) (max.) :

1.4mm²

Nominal current :

10A

Rated Current :

10 A

Flammability Rating :

UL 94 V-0

Stripping length (max.) :

10mm

Mounting Type :

BOARD

Nominal voltage :

150V AC

Brand :

TE Connectivity

Enclosure material :

Polyamide 6.6

Number of Ways :

3

Gender :

HDR

Pitch :

2.5400 mm

ECCN Code :

EAR99

Pins per row :

3

Content :

1pc(s)

Housing Material :

Polyamide 6/6

Product Depth (mm) :

6.5(mm)

Product :

Fixed Terminal Blocks

Wire protection :

yes

Contact Pitch (mm) :

2.54(mm)

Wire Size :

30 to 16, 30 AWG

AWG max. :

16

Brand Name :

Buchanan

Termination Style :

Solder Pin

Current Rating (Max) :

10/Contact(A)

Safety Approval :

UL

AWG (min.) :

30

Rad Hardened :

No

HTS Code :

8536.69.40.40

Current Rating :

10A

Weight :

1.751

CS :

2.54mm

Number of Decks :

1

Product Height (mm) :

10(mm)

Rated Voltage :

150 V

Termination Method :

Solder

Mounting :

Through Hole

Manufacturer part # :

282834-3

No. of rows :

1

Number of Positions :

3 Position

Factory Lead Time :

13 Weeks

Wire Gauge :

16 AWG

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Cross section (flexible) (min.) :

1.4mm²

Operating Temperature :

-40 to 105 °C

Nominal current - rounded value :

10A

Product Type :

Fixed Terminal Blocks

Series :

Buchanan

Min. stripping length :

10mm

Voltage Rating :

150 V ac

Subcategory :

Terminal Blocks

Type :

Eurostyle Block

Mounting Style :

Through Hole

Cross section (inflexible) (max.) :

0.05mm²

Product Length :

8.08 mm

Contact Material :

Brass

Cross section (inflexible) (min.) :

0.05mm²

Number of Contact Rows :

1

Width :

10mm

Fastening Method :

Screw

Mounting Angle :

Horizontal

Length :

8.08mm

Operating Voltage (Max) :

150VAC

Connection :

Screw terminal,Print

Operating Temp Range :

-40C to 105C

Connection Method :

Screw Clamp
