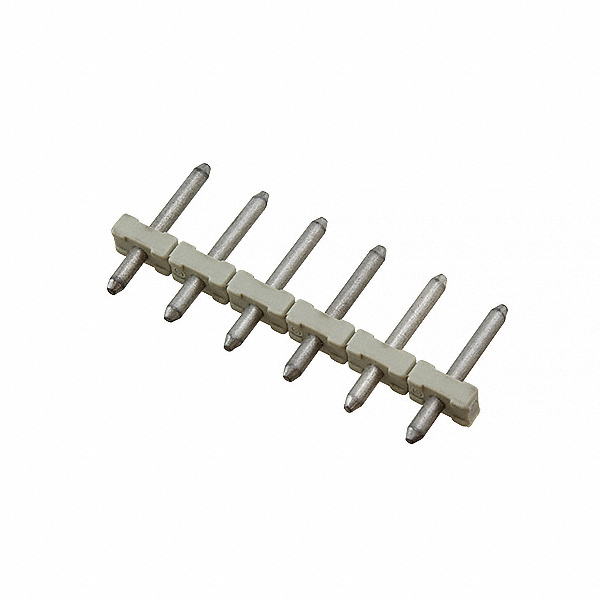

282832-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

ELV :

Compliant

Current Rating :

12A

Lead Free :

Lead Free

Number of Levels :

1

MIL Conformance :

No

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

UL Flammability Code :

94V-0

Voltage - Rated AC :

300V

Voltage - Rated :

300V

Shrouding :

No

Operating Temperature :

-40°C~110°C

Total Number of Contacts :

25

Published :

2011

JESD-609 Code :

e3

Type :

Header, Male Pins, Unshrouded

Width :

2.08mm

Number of Positions :

6

Lead Length :

7.112mm

Contact Tail Length :

0.138 3.50mm

RoHS Status :

RoHS Compliant

Depth :

2.8mm

Max Current Rating :

12A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

No

Termination Style :

Solder

Current :

12A

Housing Material :

Polyamide (PA66), Nylon 6/6

Material Flammability Rating :

UL94 V-0

Orientation :

Straight

Connector Type :

Header

Factory Lead Time :

7 Weeks

Mounting Type :

Through Hole

Contact Mating Finish :

Tin

Color :

Green

Length :

30mm

Length - Tail :

3.5mm

Feature :

Side Stacking

Number of Rows :

1

Mount :

Through Hole

Option :

GENERAL PURPOSE

Header Orientation :

Vertical

Max Voltage Rating (AC) :

300V

DIN Conformance :

No

Series :

Buchanan

Flammability Rating :

UL94 V-0

Filter Feature :

No

Pitch :

0.197 5.00mm

Mixed Contacts :

No

Contact Material :

Brass

Voltage :

300V

Insulation Height :

0.079 2.00mm

Number of Positions Per Level :

6

Packaging :

Bulk
