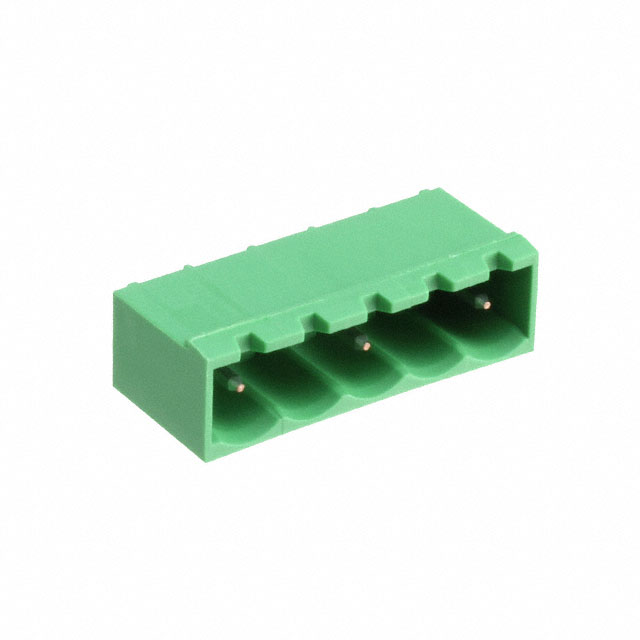

282828-3
Or copy the link below:
- Mfr.Part #
- 282828-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 3POS VERT 10.16MM
- Stock
- 1,190
- In Stock ：
- 1,190
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- IEC Conformance :
- No
- Operating Temperature :
- -40°C~110°C
- Contact Mating Finish :
- Tin
- Number of Levels :
- 1
- Type :
- Header, Male Pins, Shrouded (4 Side)
- DIN Conformance :
- No
- Length - Tail :
- 3.5mm
- Contact Tail Length :
- 0.138 3.50mm
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- UL Flammability Code :
- 94V-0
- Pitch :
- 0.400 10.16mm
- Mixed Contacts :
- No
- Contact Material :
- COPPER ALLOY
- Series :
- Buchanan
- Published :
- 2007
- Current Rating :
- 15A
- Header Orientation :
- Vertical
- Flammability Rating :
- UL94 V-0
- Current :
- 15A
- Number of Rows :
- 2
- Mount :
- Through Hole
- Filter Feature :
- No
- ELV :
- Compliant
- MIL Conformance :
- No
- Voltage :
- 600V
- RoHS Status :
- RoHS Compliant
- Additional Feature :
- AMP-Latch
- Color :
- Green
- Mounting Type :
- Through Hole
- Option :
- GENERAL PURPOSE
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Per Level :
- 3
- Termination Style :
- Solder
- Total Number of Contacts :
- 26
- Insulation Height :
- 0.329 8.36mm
- Shrouding :
- yes
- Voltage - Rated :
- 600V
- Max Current Rating :
- 15A
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Connector Type :
- Header
- Factory Lead Time :
- 12 Weeks
- Datasheets
- 282828-3
Bulk 0.400 10.16mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282828-3 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Buchanan Series.Among other features are AMP-LATCH, to name only a few.It is mounted by Through Hole.It operates at an operating temperature of -40°C~110°C.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
282828-3 Features
Buchanan series
282828-3 Applications
There are a lot of TE Connectivity AMP Connectors
282828-3 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
