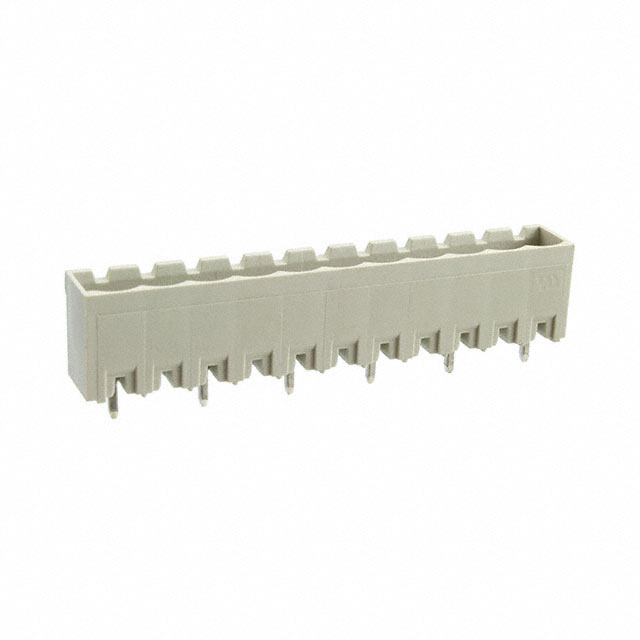

282826-6
Or copy the link below:
- Mfr.Part #
- 282826-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 6POS VERT 10MM
- Stock
- 394
- In Stock ：
- 394
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Connector Type :
- Header
- Packaging :
- Bulk
- Number of Rows :
- 1
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 12 Weeks
- Operating Temperature :
- -40°C~110°C
- ELV :
- Compliant
- Header Orientation :
- Vertical
- Termination :
- Solder
- Depth :
- 8.35mm
- Color :
- Green
- Radiation Hardening :
- No
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Shrouding :
- yes
- Orientation :
- Vertical
- Mounting Type :
- Through Hole
- Max Voltage Rating (AC) :
- 600V
- Voltage - UL :
- 600V
- Voltage - Rated :
- 600V
- Pitch :
- 0.394 10.00mm
- Number of Positions :
- 6
- Number of Contacts :
- 6
- Number of Levels :
- 1
- Contact Material :
- COPPER ALLOY
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Termination Style :
- Solder
- Current :
- 24A
- Length :
- 57mm
- Max Current Rating :
- 15A
- Contact Mating Finish :
- Tin
- Series :
- Buchanan
- Insulation Height :
- 0.472 12.00mm
- Mount :
- Through Hole
- Number of Positions Per Level :
- 6
- Published :
- 2007
- Contact Plating :
- Tin
- Positions Per Level :
- 6
- Current - UL :
- 24A
- Housing Color :
- Green
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Tail :
- 3.5mm
- Current Rating :
- 15A
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Voltage :
- 600V
- Contact Tail Length :
- 0.138 3.50mm
- Datasheets
- 282826-6
Bulk 0.394 10.00mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282826-6 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.There is a mounting hole at Through Hole.Devices operate at -40°C~110°C operating temperatures.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
282826-6 Features
Buchanan series
282826-6 Applications
There are a lot of TE Connectivity AMP Connectors
282826-6 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
