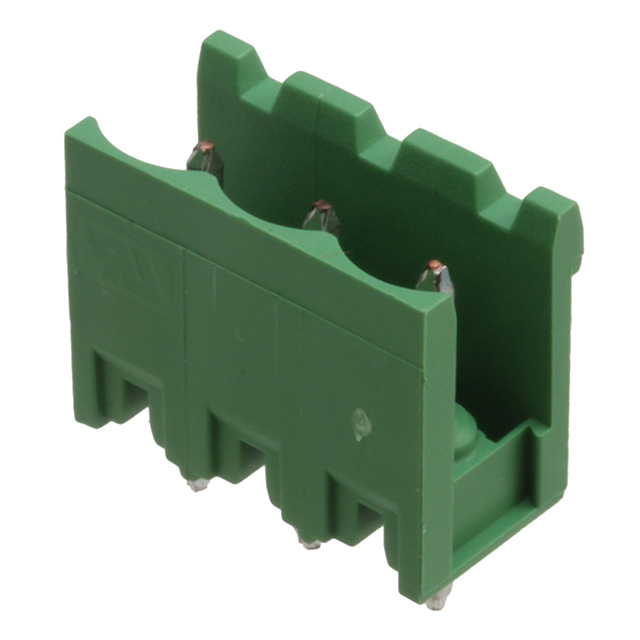

282824-3
Or copy the link below:
- Mfr.Part #
- 282824-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 3POS VERT 5.08MM
- Stock
- 44,452
- In Stock ：
- 44,452
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Length :
- 15.74mm
- Current - UL :
- 15A
- Mounting Type :
- Through Hole
- Orientation :
- Straight
- Mount :
- Through Hole
- Number of Pins :
- 3
- REACH SVHC :
- No SVHC
- Pitch :
- 0.200 5.08mm
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 15A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2002
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Number of Positions :
- 3
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Housing Color :
- Green
- Material Flammability Rating :
- UL94 V-0
- Contact Plating :
- Tin
- Radiation Hardening :
- No
- Contact Material :
- COPPER ALLOY
- Series :
- Buchanan
- Max Voltage Rating (AC) :
- 300V
- Lead Free :
- Lead Free
- Length - Tail :
- 3.5mm
- Shrouding :
- yes
- Number of Levels :
- 1
- Current :
- 15A
- Contact Mating Finish :
- Tin
- Connector Type :
- Header
- Packaging :
- Bulk
- RoHS Status :
- RoHS Compliant
- Voltage :
- 300V
- Number of Contacts :
- 3
- Number of Rows :
- 1
- Positions Per Level :
- 3
- Depth :
- 8.35mm
- Feature :
- Interlocking (Side)
- Termination :
- Solder
- Number of Positions Per Level :
- 3
- Factory Lead Time :
- 12 Weeks
- Max Current Rating :
- 15A
- Voltage - Rated :
- 300V
- Voltage - Rated AC :
- 300V
- Header Orientation :
- Vertical
- ELV :
- Compliant
- Termination Style :
- Solder
- Voltage - UL :
- 300V
- Color :
- Green
- Contact Tail Length :
- 0.138 3.50mm
- Operating Temperature :
- -40°C~110°C
- Insulation Height :
- 0.472 12.00mm
- Datasheets
- 282824-3
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282824-3 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.There are 3 pins on the device.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.Devices operate at -40°C~110°C operating temperatures.There are many benefits that this part shares with other Header, Male Pins, Shrouded (2 Side) products as well.
282824-3 Features
Buchanan series
282824-3 Applications
There are a lot of TE Connectivity AMP Connectors
282824-3 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
