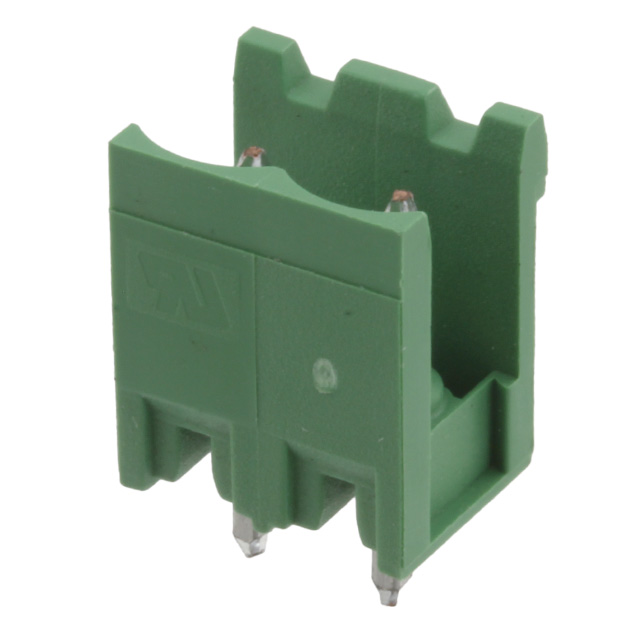

282821-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Housing Material :

Polyamide (PA66), Nylon 6/6

DIN Conformance :

No

Published :

2007

Voltage :

300V

Current Rating :

15A

RoHS Status :

RoHS Compliant

Max Voltage Rating (AC) :

300V

IEC Conformance :

No

Material Flammability Rating :

UL94 V-0

Additional Feature :

STANDARD: IEC 998

Length - Tail :

3.5mm

Contact Mating Finish :

Tin

MIL Conformance :

No

Radiation Hardening :

No

Type :

Header, Male Pins, Shrouded (2 Side)

Option :

GENERAL PURPOSE

Current :

15A

HTS Code :

8536.69.40.40

Feature :

Interlocking (Side)

Connector Type :

Header

Filter Feature :

No

Number of Positions Per Level :

2

Number of Rows :

1

Color :

Green

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

COPPER ALLOY

Series :

Buchanan

Mixed Contacts :

No

Pitch :

0.197 5.00mm

Contact Tail Length :

0.138 3.50mm

Operating Temperature :

-40°C~110°C

Pbfree Code :

yes

Termination Style :

Solder

Mounting Type :

Through Hole

Voltage - Rated AC :

300V

ECCN Code :

EAR99

Max Current Rating :

15A

Flammability Rating :

UL94 V-0

JESD-609 Code :

e3

ELV :

Compliant

Number of Positions :

2

Packaging :

Bulk

Insulation Height :

0.472 12.00mm

Number of Levels :

1

Mount :

Through Hole

UL Flammability Code :

94V-0

Total Number of Contacts :

2

Factory Lead Time :

21 Weeks

Header Orientation :

Vertical
