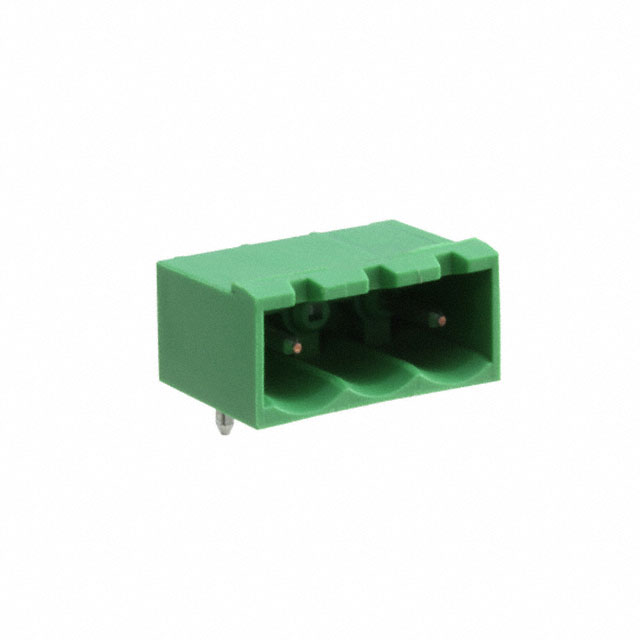

282818-2
Or copy the link below:
- Mfr.Part #
- 282818-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 2POS 10.16MM
- Stock
- 1,297
- In Stock ：
- 1,297
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Contact Mating Finish :
- Tin
- Shrouding :
- yes
- Color :
- Green
- Length - Tail :
- 3.5mm
- Number of Positions :
- 2
- Number of Positions Per Level :
- 2
- Pitch :
- 0.400 10.16mm
- Published :
- 2005
- Current :
- 15A
- Radiation Hardening :
- No
- Insulation Height :
- 0.329 8.36mm
- Material Flammability Rating :
- UL94 V-0
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Series :
- Buchanan
- Max Current Rating :
- 15A
- Contact Material :
- COPPER ALLOY
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Header Orientation :
- 90°, Right Angle
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Voltage :
- 600V
- Number of Rows :
- 1
- Max Voltage Rating (AC) :
- 600V
- Termination Style :
- Solder
- Max Operating Temperature :
- 105°C
- Connector Type :
- Header
- Length :
- 17.06mm
- Current - UL :
- 15A
- Current Rating :
- 15A
- Positions Per Level :
- 2
- Operating Temperature :
- -40°C~110°C
- Voltage - UL :
- 600V
- Housing Color :
- Green
- Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Termination :
- Solder
- Number of Contacts :
- 2
- Contact Plating :
- Tin
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Depth :
- 12mm
- Contact Tail Length :
- 0.138 3.50mm
- Number of Levels :
- 1
- Factory Lead Time :
- 12 Weeks
- Voltage - Rated :
- 600V
- Min Operating Temperature :
- -40°C
- Orientation :
- RIGHT ANGLE
- Datasheets
- 282818-2
Bulk 0.400 10.16mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282818-2 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Buchanan Series.Use it when the temperature is below 105°C.Temperatures below -40°C are required for this device to operate.It is mounted by Through Hole.It operates at an operating temperature of -40°C~110°C.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
282818-2 Features
Buchanan series
282818-2 Applications
There are a lot of TE Connectivity AMP Connectors
282818-2 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
