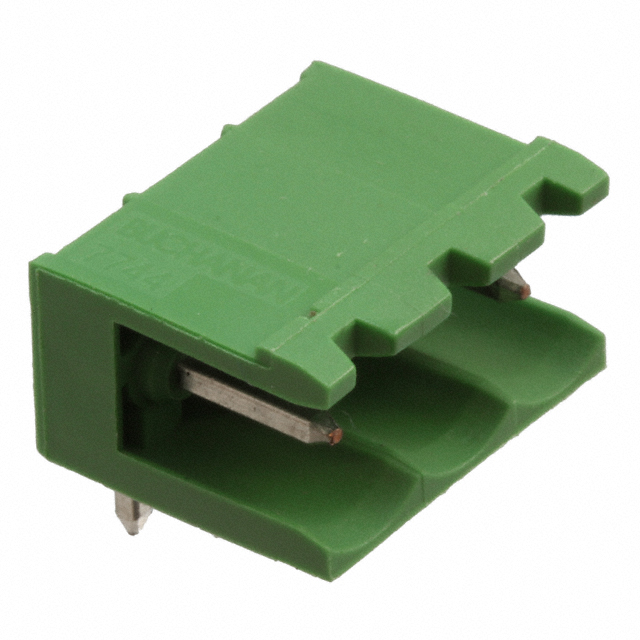

282817-2
Or copy the link below:
- Mfr.Part #
- 282817-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 2POS 90DEG 10MM
- Stock
- 349
- In Stock ：
- 349
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Voltage :
- 600V
- Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Length - Tail :
- 3.5mm
- Number of Ways :
- 2
- Contact Material :
- COPPER ALLOY
- Max Current Rating :
- 15A
- Contact Tail Length :
- 0.138 3.50mm
- Safety Approval :
- UL
- Mounting Type :
- Through Hole
- Number of Levels :
- 1
- Max Voltage Rating (AC) :
- 600V
- Material Flammability Rating :
- UL94 V-0
- Number of Positions Per Level :
- 2
- Number of Decks :
- 1
- Color :
- Green
- Orientation :
- RIGHT ANGLE
- Number of Rows :
- 1
- Type :
- Header, Male Pins, Shrouded (2 Side)
- ELV :
- Compliant
- Header Orientation :
- 90°, Right Angle
- Pitch :
- 0.394 10.00mm
- Current Rating :
- 15A
- ECCN Code :
- EAR99
- Voltage - Rated :
- 600V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- HTS Code :
- 8536.69.40.40
- Termination Style :
- Solder
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 12 Weeks
- Current :
- 15A
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Mount :
- Through Hole
- Series :
- Buchanan
- Contact Mating Finish :
- Tin
- Radiation Hardening :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Number of Positions :
- 2
- Published :
- 2007
- Packaging :
- Bulk
- Operating Temperature :
- -40°C~110°C
- Connector Type :
- Header
- Shrouding :
- yes
- Datasheets
- 282817-2
Bulk 0.394 10.00mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282817-2 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Buchanan Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -40°C~110°C Operating Temperature.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (2 Side) products.
282817-2 Features
Buchanan series
282817-2 Applications
There are a lot of TE Connectivity AMP Connectors
282817-2 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
