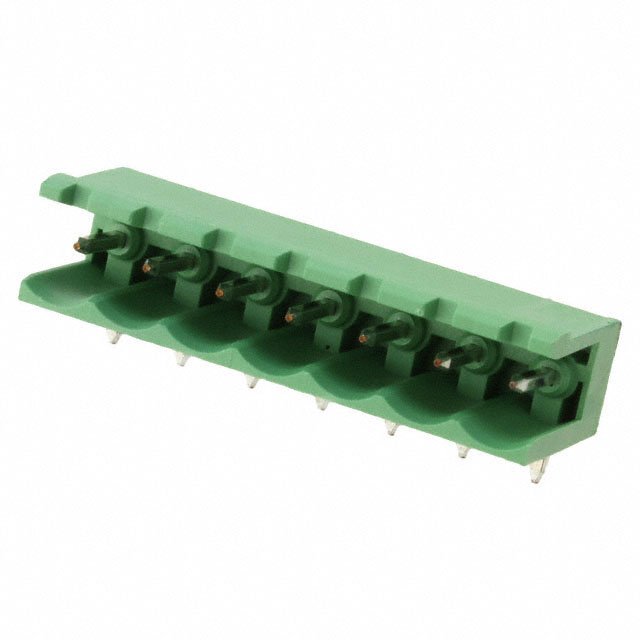

282815-7
Or copy the link below:
- Mfr.Part #
- 282815-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 7POS 90DEG 5.08MM
- Stock
- 308
- In Stock ：
- 308
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Number of Rows :
- 1
- Flammability Rating :
- UL94 V-0
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Number of Ways :
- 17
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Operating Temperature :
- -40°C~110°C
- Insulation Height :
- 0.329 8.36mm
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Termination Style :
- Solder
- Series :
- Buchanan
- Voltage - Rated :
- 300V
- Mounting Type :
- Through Hole
- Voltage - Rated AC :
- 300V
- Color :
- Green
- Current :
- 15A
- Number of Decks :
- 1
- ELV :
- Compliant
- Safety Approval :
- UL
- Contact Mating Finish :
- Tin
- Shrouding :
- yes
- Voltage :
- 300V
- ECCN Code :
- EAR99
- Feature :
- Side Stacking
- Additional Feature :
- PA6-6, 94V-0
- Fastening Method :
- Connector
- Number of Positions Per Level :
- 7
- Mount :
- Through Hole
- Connector Type :
- Header
- Header Orientation :
- 90°, Right Angle
- Lead Free :
- Lead Free
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Levels :
- 1
- Max Current Rating :
- 15A
- Current Rating :
- 15A
- Contact Tail Length :
- 0.138 3.50mm
- Published :
- 2007
- Material Flammability Rating :
- UL94 V-0
- HTS Code :
- 8536.69.40.40
- Pitch :
- 0.200 5.08mm
- Factory Lead Time :
- 12 Weeks
- Length - Tail :
- 3.5mm
- Contact Material :
- COPPER ALLOY
- Datasheets
- 282815-7
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282815-7 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Buchanan Series of products.Additionally, there are other features, such as PA6-6, 94V-0.A number of features make it more powerful because of its Side Stacking feature.Through Hole mounts the part.There is no operating temperature for the device.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (2 Side) products.
282815-7 Features
Buchanan series
282815-7 Applications
There are a lot of TE Connectivity AMP Connectors
282815-7 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
