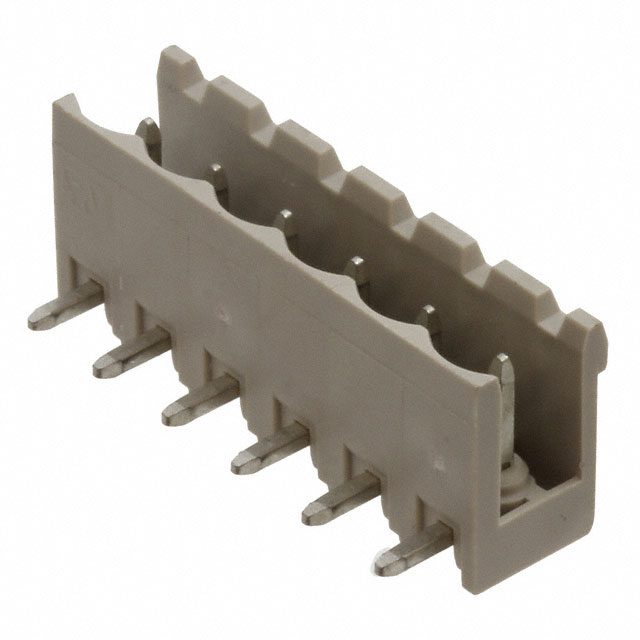

282815-6
Or copy the link below:
- Mfr.Part #
- 282815-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 6POS 90DEG 5.08MM
- Stock
- 49,793
- In Stock ：
- 49,793
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Voltage - Rated AC :
- 300V
- Radiation Hardening :
- No
- ECCN Code :
- EAR99
- Pitch :
- 0.200 5.08mm
- Contact Material :
- COPPER ALLOY
- Contact Mating Finish :
- Tin
- Header Orientation :
- 90°, Right Angle
- Color :
- Green
- Factory Lead Time :
- 12 Weeks
- Contact Tail Length :
- 0.138 3.50mm
- Published :
- 2005
- Termination Style :
- Solder
- Voltage :
- 300V
- Flammability Rating :
- UL94 V-0
- Feature :
- Side Stacking
- Packaging :
- Bulk
- RoHS Status :
- RoHS Compliant
- Number of Decks :
- 1
- Safety Approval :
- UL
- Length - Tail :
- 3.5mm
- Number of Rows :
- 1
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Header
- Number of Ways :
- 16
- Current :
- 15A
- Number of Positions Per Level :
- 6
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Voltage - Rated :
- 300V
- Fastening Method :
- Connector
- Current Rating :
- 15A
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Insulation Height :
- 0.329 8.36mm
- Shrouding :
- yes
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Number of Levels :
- 1
- Lead Free :
- Lead Free
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Max Current Rating :
- 15A
- Operating Temperature :
- -40°C~110°C
- Series :
- Buchanan
- Datasheets
- 282815-6
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282815-6 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Buchanan belongs to the Buchanan Series.In many ways, it is more powerful due to its Side Stacking feature.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~110°C.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (2 Side) products.
282815-6 Features
Buchanan series
282815-6 Applications
There are a lot of TE Connectivity AMP Connectors
282815-6 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
